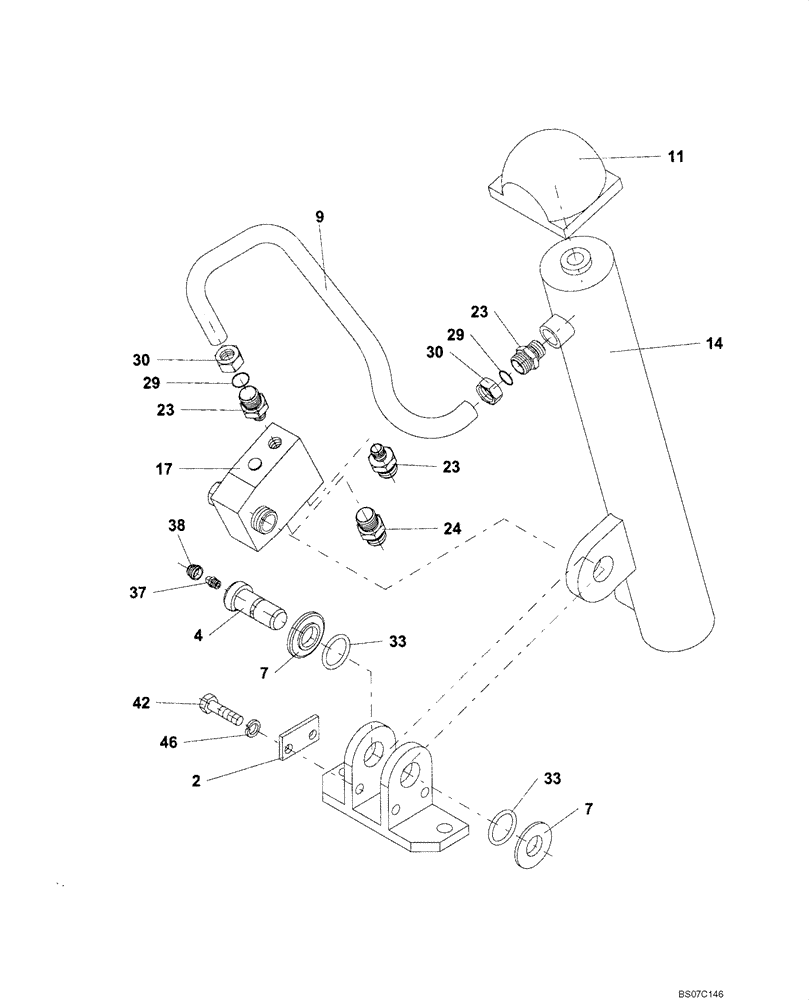

Запчасти Case SV210 (08-09[01]) - CYLINDER, HYDRAULIC PLATFORM LIFT (GROUP 381-3) (ND103132) (08) - HYDRAULICS

REF

INSTRUCTION

CYLINDER, HYDRAULIC PLATFORM LIFT (ND103132) (GGROUP 381-3)

1шт.

2

ND103345

RETAINING PLATE

Packing

1шт.

4

ND049262

PIN

1шт.

7

ND049260

INSERT

2шт.

9

ND120349

PIPE

1шт.

11

ND102263

STOP

1шт.

14

ND102044

CYLINDER

1шт.

17

ND067918

VALVE

Holding

1шт.

23

ND062200

HYD CONNECTOR

3шт.

24

ND062221

HYD CONNECTOR

1шт.

29

ND062038

SEAL

Packing

2шт.

30

ND062045

NUT

2шт.

33

ND079727

O-RING

33 x 2,5

2шт.

37

ND070133

LUBE NIPPLE,M10 x 1

1шт.

38

ND064758

PLUG

1шт.

42

ND021292

BOLT

M8 x 12

2шт.

46

ND035940

SPRING WASHER

ID 8 Spring

2шт.
