Запчасти Case SV210 (08-08[01]) - HYDRAULICS - TILTING, HOOD AND PLATFORM (GROUP 380) (ND139578) (08) - HYDRAULICS

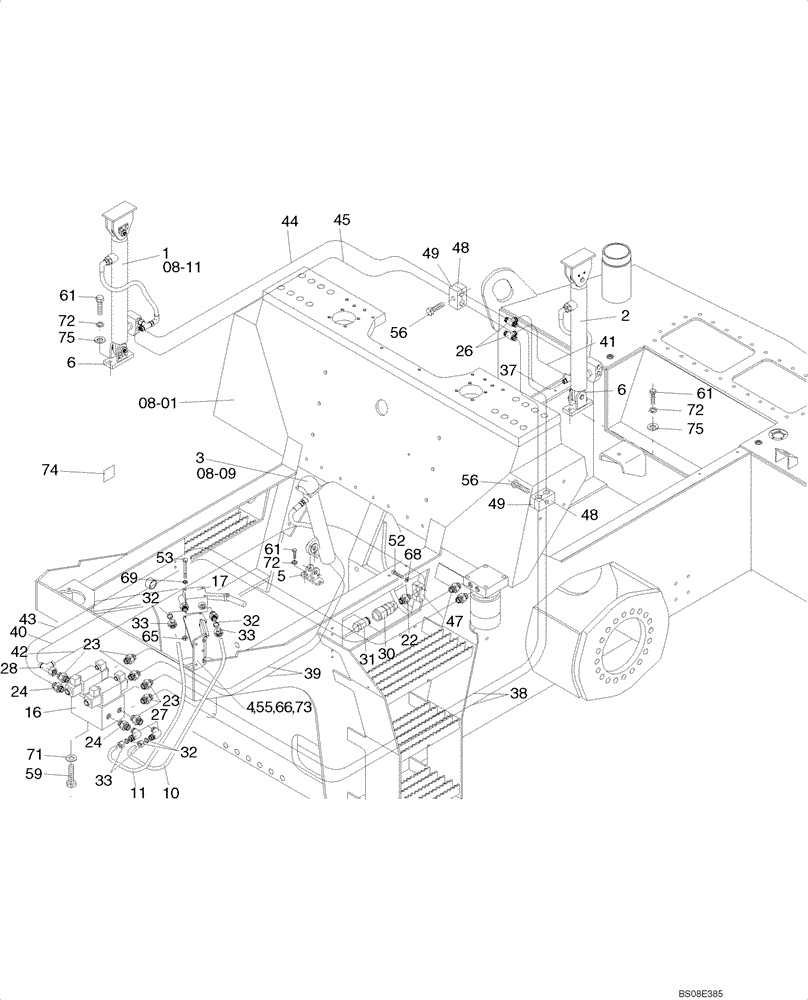

Схема запчастей Case SV210 - (08-08[01]) - HYDRAULICS - TILTING, HOOD AND PLATFORM (GROUP 380) (ND139578) (08) - HYDRAULICS
16
41
52
33
42
47
68
61
08-09
32
32
72
37
4
61
11
75
72
56
32
44
30
5
26
55
48
08-01
28
38
66
74
53
71
22
49
69
08-11
33
2
1
23
40
3
72
33
24
59
17
31
56
73
6
61
27
6
23
45
48
24
10
65
43
39
75
49

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULICS - TILTING, HOOD AND PLATFORM (ND139578) (GROUP 380)

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER, HOOD LIFT RH; See Figure 08-11 For Service Breakdown

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER, HOOD LIFT LH; See Figure 08-13 For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

CYLINDER, PLATFORM LIFT; See Figure 08-09 For Service Breakdown

1шт.

4

ND126729

HOLDER

1шт.

5

ND132357

BRACKET

BRACKET

1шт.

6

ND126728

BRACKET

2шт.

10

ND132370

HYD TUBE

PIPE

1шт.

11

ND132371

HYD TUBE

PIPE

1шт.

16

ND067789

BLOCK

Valve Solenoid, Serial Range: -NENTB2080

1шт.

16

47715258

SOLENOID VALVE

, Start Serial: NENTB2081

1шт.

16-1

ND067925

SOLENOID

Not Illustrated

2шт.

17

ND067870

HYDRAULIC PUMP

Hand

1шт.

22

ND062220

HYD CONNECTOR

1шт.

23

ND062233

HYD CONNECTOR

6шт.

24

ND062234

HYD CONNECTOR

2шт.

26

ND138579

TEE

Tee

2шт.

27

ND062414

ELBOW

2шт.

28

ND062313

HYD CONNECTOR

Tee

1шт.

30

ND112941

QUICK MALE COUPLING

1шт.

31

ND062386

COVER

1шт.

32

ND062038

SEAL

4шт.

33

ND062045

NUT

4шт.

37

ND138576

HOSE

1шт.

38

ND141384

HYDRAULIC HOSE

Replaces ND061645 Hose Used On Some Models

2шт.

39

ND102879

HOSE,350.00 mm

2шт.

40

ND102095

HOSE,800.00 mm

2шт.

41

ND129741

HOSE

1шт.

42

ND127245

HOSE

1шт.

44

ND138575

HOSE

1шт.

45

ND138574

HOSE

1шт.

47

ND064809

CLAMP

1шт.

48

ND064851

SLEEVE

2шт.

49

ND064807

CLAMP

2шт.

52

ND024234

BOLT

2шт.

53

ND021179

BOLT

3шт.

55

ND021182

BOLT

3шт.

56

ND021184

BOLT

2шт.

59

ND021196

BOLT

2шт.

61

ND021310

BOLT

6шт.

65

ND021847

NUT

3шт.

66

ND021848

NUT

3шт.

69

ND029248

WASHER

2шт.

70

ND029309

SPRING WASHER

3шт.

72

ND035941

WASHER

2шт.

73

ND035942

WASHER

6шт.

74

ND035940

SPRING WASHER

3шт.

75

ND081828

DECAL

Platform Hood Tilt

1шт.

76

ND122456

WASHER

4шт.

Выбрано товаров: 49
