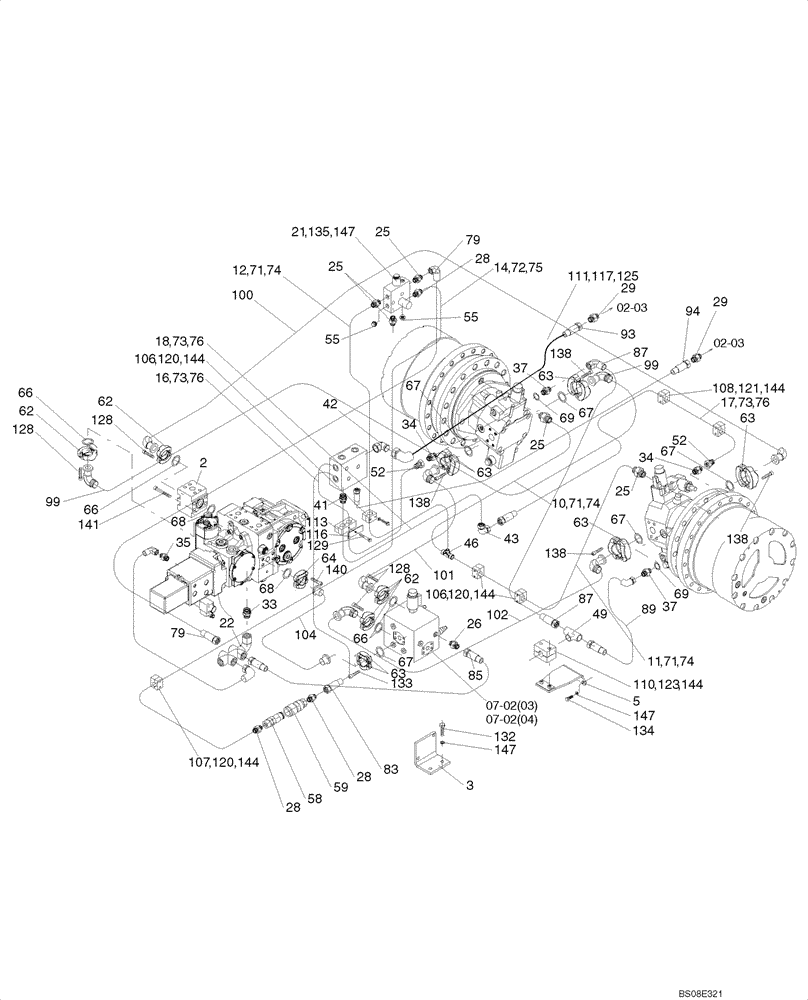

Запчасти Case SV210 (08-07[01]) - HYDRAULIC SYSTEM OF TRAVEL, REAR (A) (GROUP 305) (ND139572) (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, REAR (A) (ND139572) (GROUP 305)

1шт.

2

ND031247

BLOCK

1шт.

3

ND139614

HOLDER

1шт.

5

ND139598

BRACKET

1шт.

10

ND132365

HYD TUBE

PIPE

1шт.

11

ND132366

HYD TUBE

PIPE

1шт.

12

ND132367

HYD TUBE

PIPE

1шт.

14

ND127573

HYD TUBE

1шт.

16

ND132368

HYD TUBE

PIPE

1шт.

17

ND132369

HYD TUBE

PIPE

1шт.

18

ND132373

HYD TUBE

PIPE

1шт.

21

ND123634

VALVE BLOCK

Includes ND067924 Solenoid and ND115381 Brake Pressure Switch

1шт.

21

ND067924

SOLENOID

Not Illustrated

2шт.

21

ND115381

PRESSURE SWITCH

PRESSURE SWITCH; Brake (Not Illustrated)

1шт.

22

ND138052

HYD CONNECTOR

1шт.

25

ND062153

HYD CONNECTOR

5шт.

26

ND137344

HYD CONNECTOR

1шт.

28

ND062173

HYD CONNECTOR

3шт.

29

ND062224

HYD CONNECTOR

2шт.

33

ND062136

HYD CONNECTOR

1шт.

34

ND062135

HYD CONNECTOR

2шт.

35

ND062138

HYD CONNECTOR

1шт.

37

ND139010

HYD CONNECTOR

2шт.

41

ND062367

HYD CONNECTOR

1шт.

42

ND062310

COUPLING

1шт.

43

ND062255

90 ELBOW

Elbow

1шт.

46

ND062294

TEE

Tee

1шт.

49

ND062335

TEE

Tee

1шт.

52

ND062391

REDUCER

2шт.

55

ND062452

PLUG

2шт.

58

ND112940

COUPLING, QUICK, FEM

1шт.

59

ND112941

QUICK MALE COUPLING

1шт.

62

ND062007

CLAMP

8шт.

63

ND062008

HALF-COLLAR

10шт.

64

ND062009

FLANGE

2шт.

66

ND079932

O-RING

4шт.

67

ND079933

O-RING

5шт.

68

ND079934

O-RING

2шт.

71

ND062039

SEAL

6шт.

72

ND062033

SLEEVE

2шт.

73

ND062037

SEAL

6шт.

74

ND062046

NUT

6шт.

75

ND062047

NUT

2шт.

76

ND062058

NUT

6шт.

79

ND134327

HOSE

1шт.

83

ND102239

HOSE

1шт.

85

ND138457

HOSE

1шт.

87

ND138456

HOSE

1шт.

89

ND107207

HOSE

Replaces ND138455 Hose; Not used on CNH models

1шт.

91

ND123467

HYDRAULIC HOSE

1шт.

93

ND138454

HOSE

1шт.

94

ND131059

HOSE

HOSE

1шт.

99

ND104846

HOSE

1шт.

100

ND104847

HOSE

1шт.

101

ND138577

HOSE

1шт.

102

ND138450

HOSE

1шт.

104

ND138452

HOSE

1шт.

106

ND064797

SLEEVE

3шт.

107

ND064786

CLAMP

1шт.

108

ND064799

CLAMP

2шт.

110

ND064810

SLEEVE

1шт.

111

ND064801

SLEEVE

1шт.

113

ND064802

SLEEVE

1шт.

116

ND064807

CLAMP

1шт.

117

ND064805

COVER

1шт.

120

ND024231

BOLT

5шт.

121

ND024233

BOLT

4шт.

123

ND024236

BOLT

2шт.

125

ND021178

BOLT

2шт.

128

ND021296

BOLT

16шт.

129

ND021184

BOLT

1шт.

132

ND021301

BOLT

2шт.

133

ND021195

BOLT

4шт.

134

ND021197

BOLT

2шт.

135

ND024264

BOLT

2шт.

138

ND034059

BOLT

16шт.

140

ND034063

BOLT

4шт.

141

ND034062

BOLT

4шт.

144

ND029248

WASHER

14шт.

147

ND035941

WASHER

6шт.

149

ND106910

STRAP

15шт.
