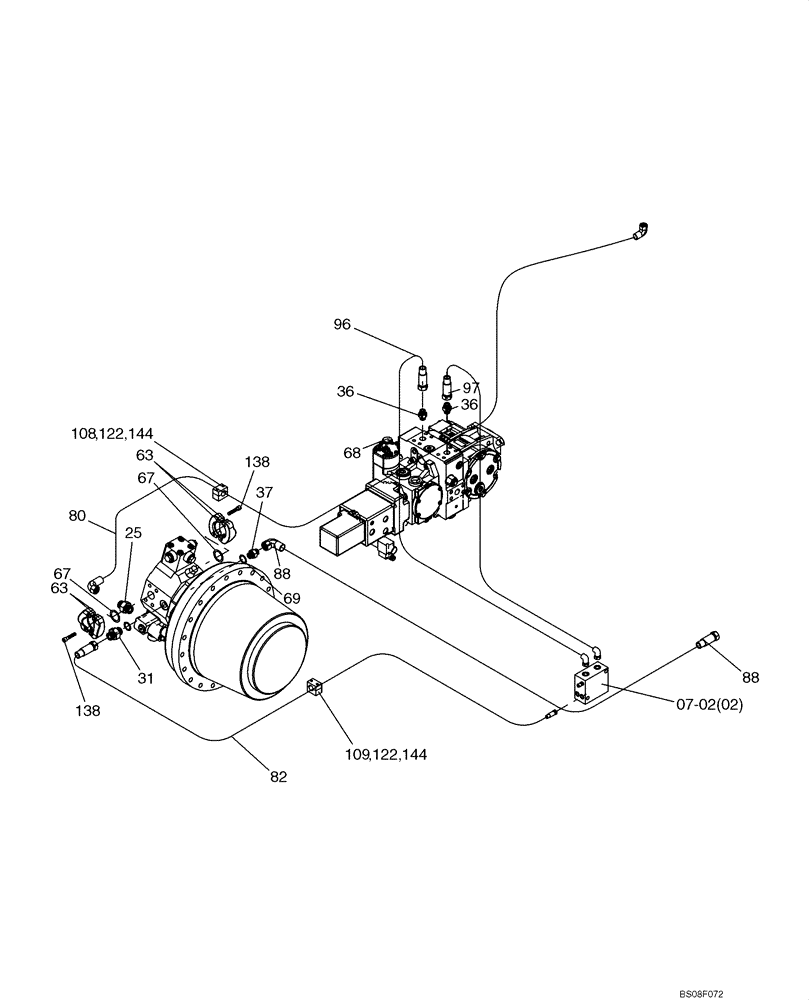

Запчасти Case SV210 (08-03[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (GROUP 305) (ND139572) (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (ND139572) (GROUP 305)

1шт.

25

ND062153

HYD CONNECTOR

1шт.

31

ND138443

HYD CONNECTOR

1шт.

36

ND062156

HYD CONNECTOR

2шт.

37

ND139010

HYD CONNECTOR

1шт.

63

ND062008

HALF-COLLAR

4шт.

67

ND079933

O-RING

2шт.

69

ND079939

O-RING

1шт.

80

ND138447

HOSE

1шт.

82

ND138446

HOSE

1шт.

88

ND104850

HOSE

1шт.

96

ND138445

HOSE

1шт.

97

ND138444

HOSE

1шт.

108

ND064799

CLAMP

1шт.

109

ND061999

CLAMP

1шт.

122

ND024235

BOLT

4шт.

138

ND034059

BOLT

8шт.

144

ND029248

WASHER

4шт.
