(05-02[01]) - STEERING, HYDRAULIC CIRCUIT (GROUP 336) (ND139577)

Запчасти Case SV210 (05-02[01]) - STEERING, HYDRAULIC CIRCUIT (GROUP 336) (ND139577) (05) - STEERING

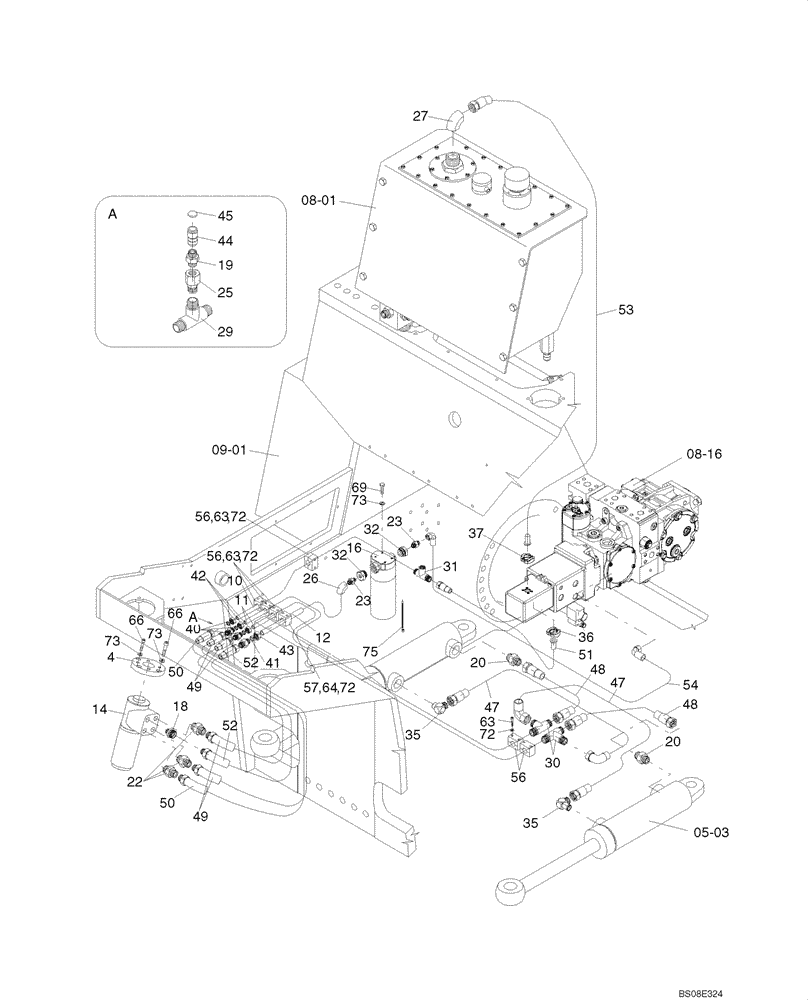

Схема запчастей Case SV210 - (05-02[01]) - STEERING, HYDRAULIC CIRCUIT (GROUP 336) (ND139577) (05) - STEERING
52
53
32
50
20
14
63
32
56
4
16
69
66
73
08-01
73
26
37
50
25
56
75
23
72
23
66
63
35
22
64
73
20
43
31
57
56
72
72
48
54
47
48
19
49
27
40
51
49
10
63
45
44
42
41
52
12
08-16
05-03
30
56
36
72
18
11
35
29
47
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

STEERING, HYDRAULIC CIRCUIT (ND139577) (GROUP 336)

1шт.

4

ND025192

PLATE

1шт.

10

ND124194

HYD TUBE

1шт.

11

ND104431

HYD TUBE

2шт.

12

ND132372

PIPE

HYD TUBE

1шт.

14

ND068019

HYDRAULIC STEERING

Control Valve

1шт.

16

ND123242

FILTER ASSY

1шт.

16-1

ND126829

HYDRAULIC OIL FILTER

Not Illustrated

1шт.

18

ND062151

HYD CONNECTOR

1шт.

19

ND062145

HYD CONNECTOR

1шт.

20

ND062140

HYD CONNECTOR

2шт.

22

ND062180

HYD CONNECTOR

3шт.

23

ND062196

HYD CONNECTOR

2шт.

25

ND062317

HYD CONNECTOR

1шт.

26

ND062262

ELBOW

CONNECTOR, Elbow

1шт.

27

ND062301

HYD CONNECTOR

Elbow

1шт.

29

ND062394

HYD CONNECTOR

Tee

1шт.

30

ND062302

HYD CONNECTOR

Tee

2шт.

31

ND062303

HYD CONNECTOR

Tee

1шт.

32

ND123013

REDUCER

2шт.

35

ND062475

BANJO BOLT

2шт.

36

ND062506

FLANGE

1шт.

37

ND123014

FLANGE

Replaces ND124963 Flange Used On Some Models

1шт.

40

ND062037

SEAL

6шт.

41

ND062036

SEAL

2шт.

42

ND062058

NUT

6шт.

43

ND062051

NUT

2шт.

44

ND112942

FITTING

Quick Coupling

1шт.

45

ND062318

PLUG

1шт.

47

ND061199

HOSE,540.00 mm

2шт.

48

ND141386

HYDRAULIC HOSE

Replaces ND102866 Hose Used On Some Models

2шт.

49

ND061522

HOSE

2шт.

50

ND061523

HOSE

1шт.

51

ND138578

HOSE

1шт.

52

ND061525

HOSE,980.00 mm

1шт.

53

ND138449

HOSE

1шт.

54

ND141385

HYDRAULIC HOSE

Replaces ND061147 Hose Used On Some Models

1шт.

56

ND064799

CLAMP

6шт.

57

ND064813

CLAMP

1шт.

63

ND024233

BOLT

12шт.

64

ND024234

BOLT

2шт.

66

ND024257

BOLT

7шт.

69

ND021302

BOLT

4шт.

72

ND029248

WASHER

14шт.

73

ND035941

WASHER

11шт.

75

ND106910

STRAP

Tie

6шт.
