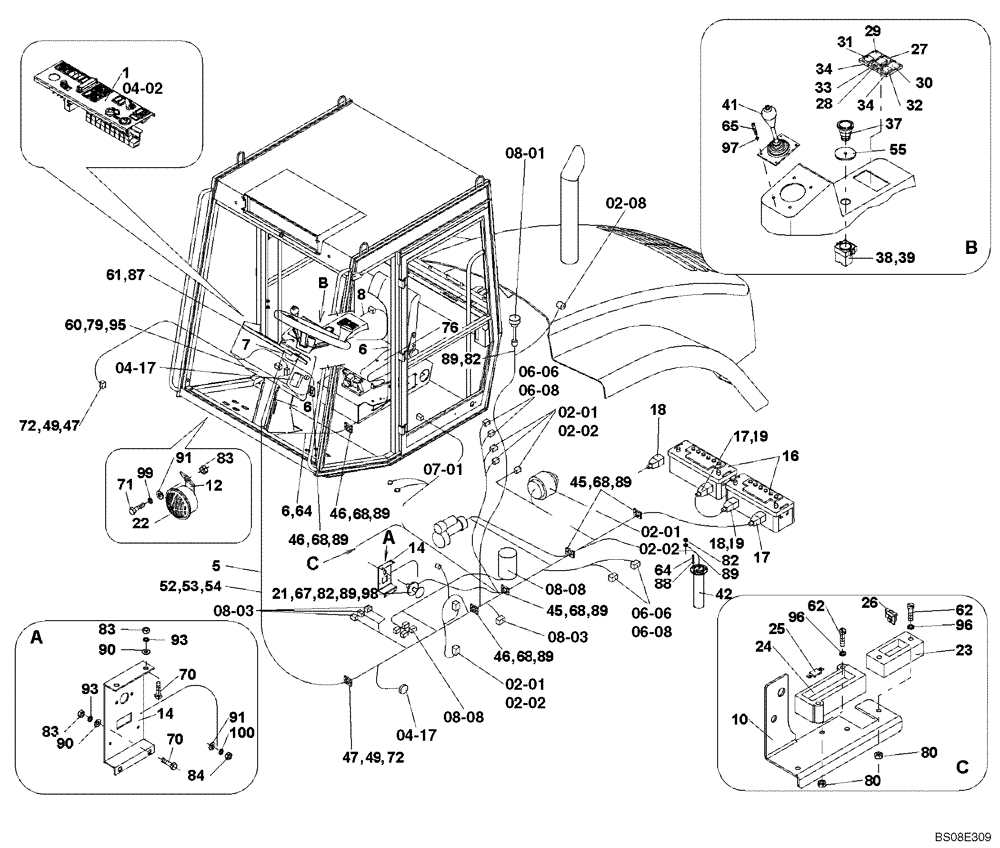

ELECTRICAL INSTALLATION (ND139597) (GROUP 408)

1шт.

1

NSS

NOT SOLD SEPARAT

DASHBOARD; See Figure 04-02 (01) For Service Breakdown

1шт.

5

ND147296

WIRE HARNESS

Engine and Chassis, Serial Range: DDD000891-NENTB2080

1шт.

5

47715575

WIRE HARNESS

Engine and Chassis, Serial Range: NENTB2081-NENTB2092

1шт.

5

47838466

WIRE HARNESS

, Start Serial: NENTB2093

1шт.

6

ND139588

HARNESS

Connects 6 and 7, Serial Range: -NANTB2009

1шт.

6

84420294

WIRE HARNESS

Connects 6 and 7, Start Serial: NANTB2010

1шт.

7

84372442

WIRE HARNESS

Instrument Panel, Serial Range: NANTB2008-NANTB2009

1шт.

7

84420295

WIRE HARNESS

Instrument Panel, Serial Range: NANTB2010-NENTB2080

1шт.

7

47782126

WIRE HARNESS

Instrument Panel, Start Serial: NENTB2081

1шт.

8

84372440

WIRE HARNESS

RH Control Console, Serial Range: NANTB2008-NDNTB2079

1шт.

8

47592087

WIRE HARNESS

RH Control Console, Start Serial: NDNTB2080

1шт.

10

ND139609

HOLDER

1шт.

12

ND054607

SUPPORT

1шт.

14

ND031350

PLATE

Steel, Serial Range: -NDNTB2079

1шт.

14

47592081

BRACKET

, Start Serial: NDNTB2080

1шт.

16

B24F72W

WET BATTERY

For US Only

2шт.

16

CC24F72W

WET BATTERY

For Canada Only

2шт.

17

ND111732

TERMINAL CONNECTOR

Positive

2шт.

18

ND111733

TERMINAL CONNECTOR

Negative

2шт.

19

ND111783

COVER

3шт.

21

ND064972

SWITCH

Master Disconnect

1шт.

22

ND064679

HORN

1шт.

23

ND129300

CLIP

Fuse

1шт.

24

ND138580

FUSE BOX

1шт.

25

ND129301

FUSE,125A

1шт.

26

ND065926

FUSE,30A

1шт.

27

ND064516

SWITCH

Work Speed Range

1шт.

28

ND064520

COVER PLATE

1шт.

29

ND065382

SWITCH

Travel Speed

1шт.

30

ND065396

SWITCH

Emergency Brake

1шт.

31

ND065401

LENS

1шт.

32

ND065349

LENS

1шт.

33

ND065310

TERMINAL

1шт.

34

ND065309

BEZEL

2шт.

37

ND121085

KNOB

Emergency Stop

1шт.

38

ND121091

FLANGE

Connecting

1шт.

39

ND124174

CONTACT PLATE

1шт.

41

ND119476

MANIPULATOR

Lever

1шт.

41

84593572

CONTROL LEVER

1шт.

41

ND118115

SWITCH

Drum Vibration Control (On/Off)

1шт.

41

ND141149

BOOT

RUBBER, Joystick

1шт.

41

47397505

KNOB

1шт.

42

47875908

KIT

Incl Parts List Below, Serial Range: -NENTB2092

1шт.

42

47879167

SENDER UNIT

Fuel Level, Serial Range: -NENTB2092

1шт.

42

87691304

WIRE CONNECTOR,Female

, Serial Range: -NENTB2092

1шт.

42

87702671

ELEC CONNECTOR,Tin, 0.75 - 1.50mm

, Serial Range: -NENTB2092

2шт.

42

441663A1

SEAL

, Serial Range: -NENTB2092

2шт.

42

87694681

CUP PLUG

, Serial Range: -NENTB2092

1шт.

42

47837256

BOLT

, Serial Range: -NENTB2092

5шт.

42

47713273

WASHER

, Serial Range: -NENTB2092

5шт.

42

47879167

SENDER UNIT

Fuel Level, Start Serial: NENTB2093

1шт.

45

ND064814

CLAMP

3шт.

46

ND062001

CLAMP

9шт.

47

ND064849

SLEEVE

2шт.

49

ND064807

CLAMP

2шт.

52

ND078445

SECURING STRAP

25шт.

53

ND078447

CABLE TIE

CABLE STRAP

5шт.

54

ND066061

TAPE

1шт.

55

ND081766

DECAL

Symbol

1шт.

56

ND081909

DECAL

Symbol

1шт.

59

ND024102

BOLT

2шт.

60

ND024101

BOLT

4шт.

61

ND023783

BOLT

4шт.

62

ND024110

BOLT

2шт.

64

ND024122

BOLT

9шт.

65

ND024124

BOLT

4шт.

67

ND024137

BOLT

2шт.

68

ND024234

BOLT

24шт.

69

ND021289

BOLT

1шт.

70

ND021294

BOLT

4шт.

71

ND021295

BOLT

1шт.

72

ND021184

BOLT

2шт.

74

ND021188

BOLT

1шт.

76

ND024965

SELF-TAP SCREW

4шт.

79

ND107946

NUT

6шт.

80

ND107947

NUT

2шт.

82

ND021847

NUT

5шт.

83

ND021848

NUT

5шт.

84

ND021849

NUT

2шт.

86

ND029245

WASHER

2шт.

87

ND029246

WASHER

2шт.

88

ND029247

WASHER

5шт.

89

ND029248

WASHER

28шт.

90

ND029249

WASHER

5шт.

91

ND029250

WASHER

3шт.

93

ND035940

SPRING WASHER

4шт.

95

ND029305

WASHER

4шт.

96

ND029306

WASHER

4шт.

97

ND029308

WASHER

4шт.

98

ND029309

SPRING WASHER

3шт.

99

ND029310

WASHER

1шт.

100

ND029311

WASHER

2шт.

102

ND107946

NUT

2шт.

103

ND107947

NUT

2шт.
