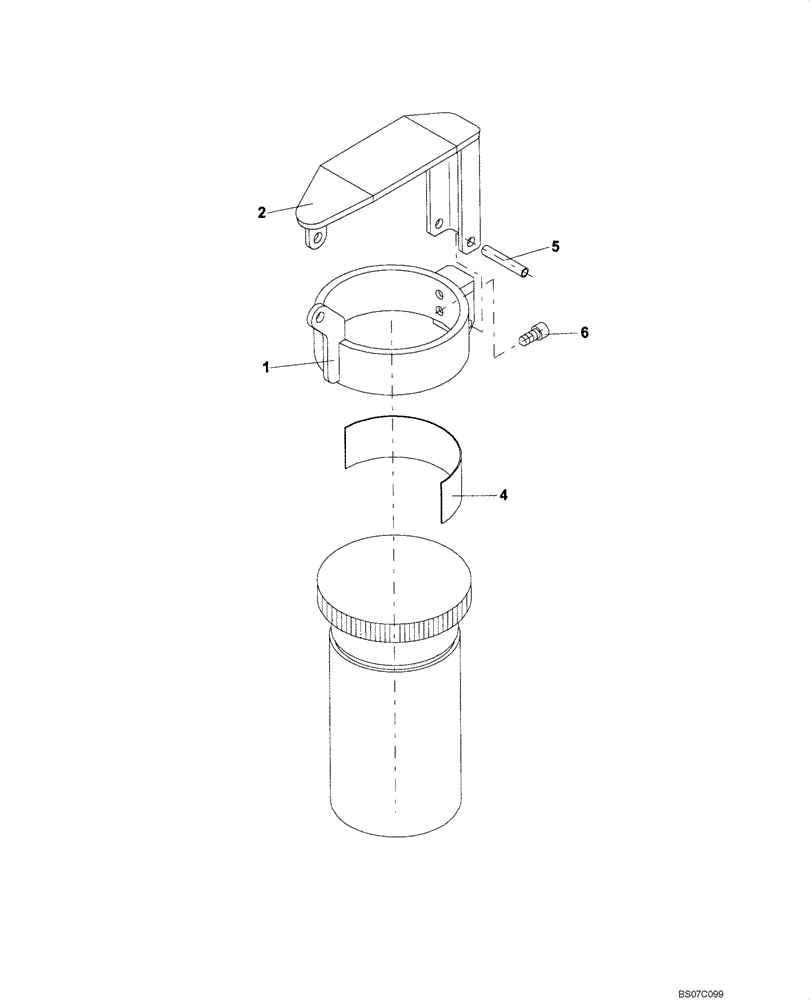

Запчасти Case SV210 (03-03[01]) - LOCK, FUEL FILL (GROUP 92) (ND107501) (03) - FUEL SYSTEM

REF

INSTRUCTION

LOCK, FUEL FILL (ND107501) (GROUP 92)

1шт.

1

ND107497

SUPPORT

Sleeve

1шт.

2

ND107498

CAP

Cover

1шт.

4

ND107500

PROTECTOR

Steel Plate

1шт.

5

ND107502

PIN

Rivot

1шт.

6

ND121784

BOLT,M10 x 1.25 x 80mm, Class 8.8

Set Screw

2шт.
