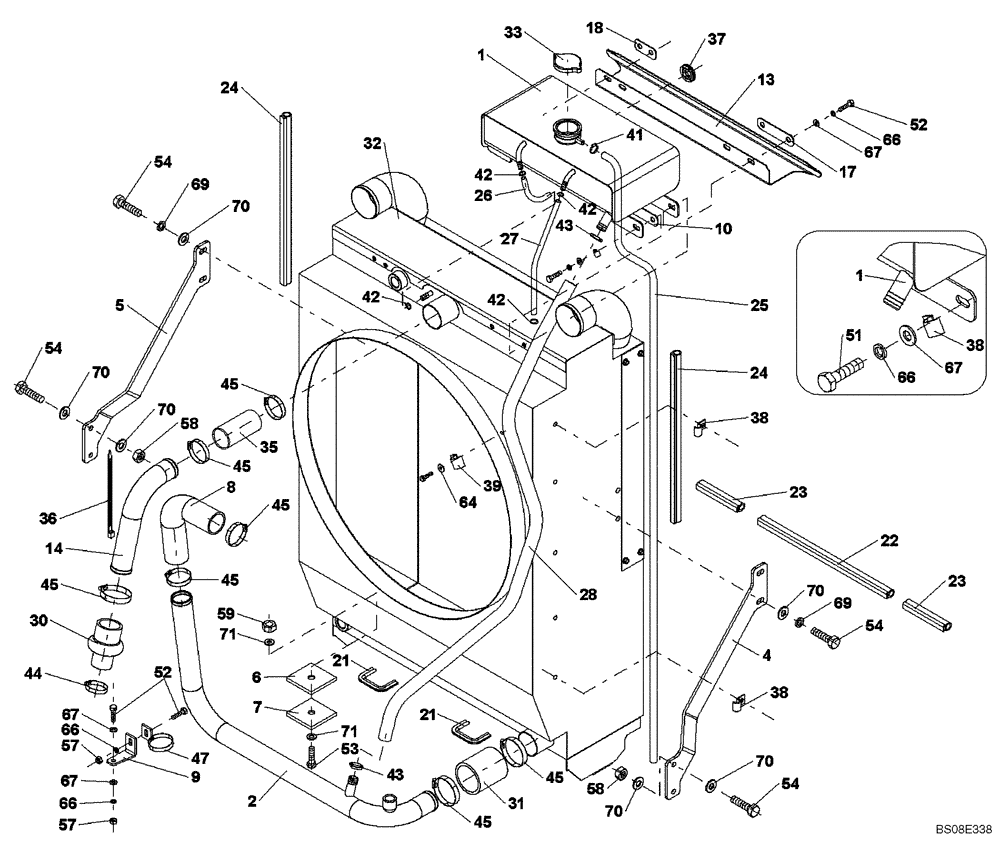

Запчасти Case SV210 (02-03[01]) - RADIATOR INSTALLATION (GROUP 126) (ND138825) (02) - ENGINE

REF

INSTRUCTION

RADIATOR INSTALLATION (ND138825) (GROUP 126)

1шт.

1

ND137152

TANK

Equalizer

1шт.

2

ND137195

PIPE

1шт.

4

ND133642

BRACKET, SUPPORTING

1шт.

5

ND133643

BRACKET, SUPPORTING

1шт.

6

ND133474

SHIM

4шт.

7

ND133471

SHIM

4шт.

8

ND138876

ELBOW

1шт.

9

ND138875

CLAMP

1шт.

10

ND137197

PLATE

Spacing

1шт.

13

ND138840

STEEL PLATE

1шт.

14

ND137196

PIPE

1шт.

17

ND135331

SPACER

1шт.

18

ND137198

SPACER

1шт.

21

ND133665

STRAP

2шт.

22

ND132517

SEAL

1шт.

23

ND132518

SEAL

2шт.

24

ND138885

SEAL

2шт.

25

ND138879

HOSE

Oil Refusal

1шт.

26

ND138882

HOSE

Deaerating

1шт.

27

ND138883

HOSE

Deaerating

1шт.

28

ND138884

SHAFT

1шт.

30

ND135692

REDUCER

1шт.

31

ND138881

COUPLING

1шт.

32

ND135334

COOLER

1шт.

33

ND090690

COVER

1шт.

35

ND138880

COUPLING

1шт.

36

ND078446

SECURING STRAP

2шт.

37

ND070149

SIGHTGLASS

Oil Level Gauge

1шт.

38

ND135003

CLAMP

3шт.

39

ND135874

CLAMP

2шт.

41

ND069521

CLAMP

1шт.

42

ND069478

CLIP

4шт.

43

ND107319

CLAMP

Hose

2шт.

44

ND105775

HOSE CLAMP

Hose; Qty Was 1

1-8шт.

45

ND107320

CLAMP

Replaced By Ref Item 44 ND105775 Clamp

7шт.

47

ND135678

CLAMP

1шт.

51

ND021294

BOLT

4шт.

52

ND021295

BOLT

6шт.

53

ND021312

BOLT

2шт.

54

ND021303

BOLT

8шт.

57

ND034087

NUT

2шт.

58

ND034088

NUT

4шт.

59

ND034086

NUT

2шт.

64

ND029290

WASHER

2шт.

66

ND035940

SPRING WASHER

Spring

10шт.

67

ND029285

WASHER

10шт.

69

ND035941

WASHER

8шт.

70

ND035826

WASHER

8шт.

71

ND122456

WASHER

4шт.
