(02-02[01]) - ENGINE INSTALLATION (B) (GROUP 106) (ND138823)

Запчасти Case SV210 (02-02[01]) - ENGINE INSTALLATION (B) (GROUP 106) (ND138823) (02) - ENGINE

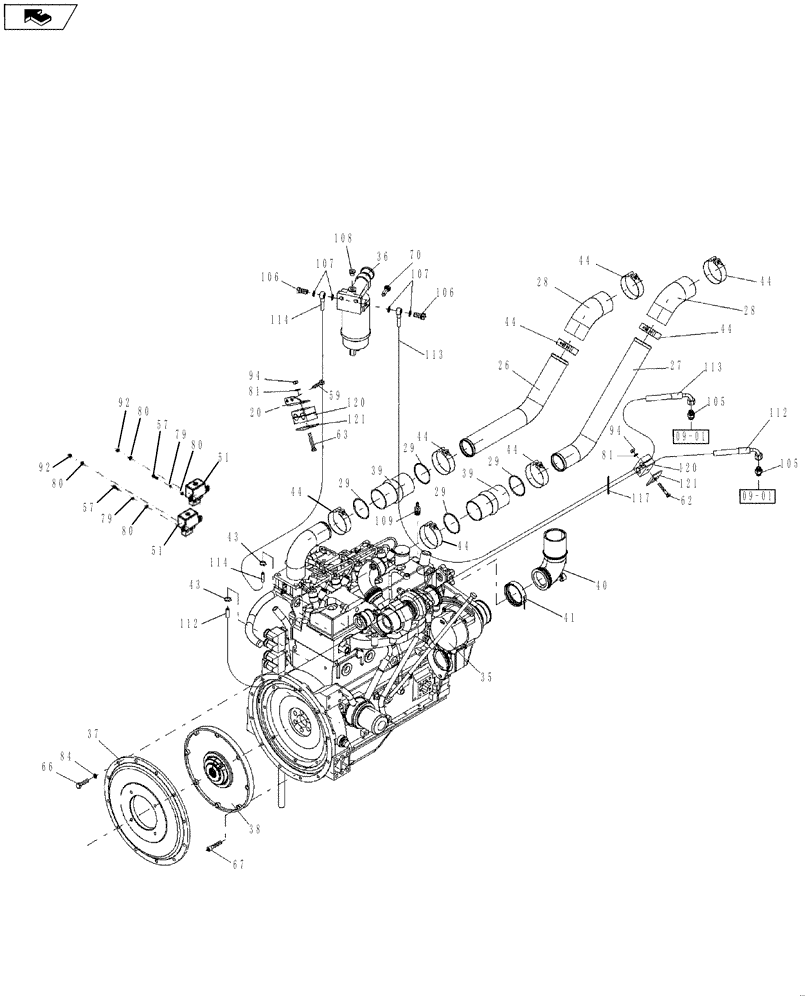

Схема запчастей Case SV210 - (02-02[01]) - ENGINE INSTALLATION (B) (GROUP 106) (ND138823) (02) - ENGINE
39
121
44
66
29
29
80
20
28
107
117
112
home
40
28
80
43
92
113
39
120
80
51
44
44
79
114
63
57
81
92
51
38
29
36
114
09-01
09-01
44
79
108
70
44
105
59
44
107
29
57
105
112
43
84
113
44
106
62
27
94
37
67
41
80
121
94
120
26
35
81
109
44
106
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ENGINE INSTALLATION (B) (ND138823) (GROUP 106)

1шт.

20

ND138859

HOLDER

1шт.

26

ND137230

PIPE

1шт.

27

ND137231

PIPE

1шт.

28

ND138874

ELBOW

, Serial Range: -NGNTA2111

2шт.

28

48136076

, Start Serial: NGNTA2112

ELBOW

2шт.

29

ND135385

RING

4шт.

35

NSS

NOT SOLD SEPARAT

ENGINE CUMMINS; See Your Nearest Cummins Engine Dealer for Parts And Service

1шт.

35-1

87409203

ENGINE OIL FILTER

Not Illustrated

2шт.

35-2

84214732

BELT

Not Illustrated

1шт.

35-3

ND137979

FUEL FILTER

Not Illustrated

1шт.

36

NSS

NOT SOLD SEPARAT

Fuel Filter Housing Assy

1шт.

36-1

47431839

FUEL FILTER

Not Illustrated

1шт.

37

ND135338

FLANGE

1шт.

38

ND111887

COUPLING

1шт.

39

ND135336

COUPLING

2шт.

40

ND141691

ELBOW

Replaces ND138066 Elbow

1шт.

41

ND141688

CLAMP

Replaces ND137262 Sleeve

1шт.

43

ND107318

CLAMP

Hose; If used

2шт.

44

ND135110

CLIP

8шт.

51

ND145328

RELAY,24V

Starter

2шт.

57

ND021287

BOLT,M8 x 16

4шт.

59

ND021295

BOLT

2шт.

62

ND021187

BOLT

1шт.

63

ND021188

BOLT

If Used

1шт.

66

ND021303

BOLT

26шт.

67

ND024260

BOLT

8шт.

70

ND021311

BOLT

22шт.

79

ND118926

WASHER

4шт.

80

ND029248

WASHER

8шт.

81

ND035940

SPRING WASHER

6шт.

84

ND035941

WASHER

32шт.

92

ND027300

NUT

4шт.

94

ND021848

NUT

4шт.

105

ND062154

HYD CONNECTOR

2шт.

106

84577236

BOLT

1шт.

107

ND073390

SEALING RING

4шт.

108

ND136616

PLUG

1шт.

109

ND136547

TERMINAL

1шт.

112

84577242

FUEL HOSE

1шт.

113

84577244

FUEL HOSE

1шт.

114

84577245

FUEL HOSE

1шт.

117

ND078445

SECURING STRAP

7шт.

120

ND062019

CLAMP

2шт.

121

ND064807

CLAMP

2шт.
