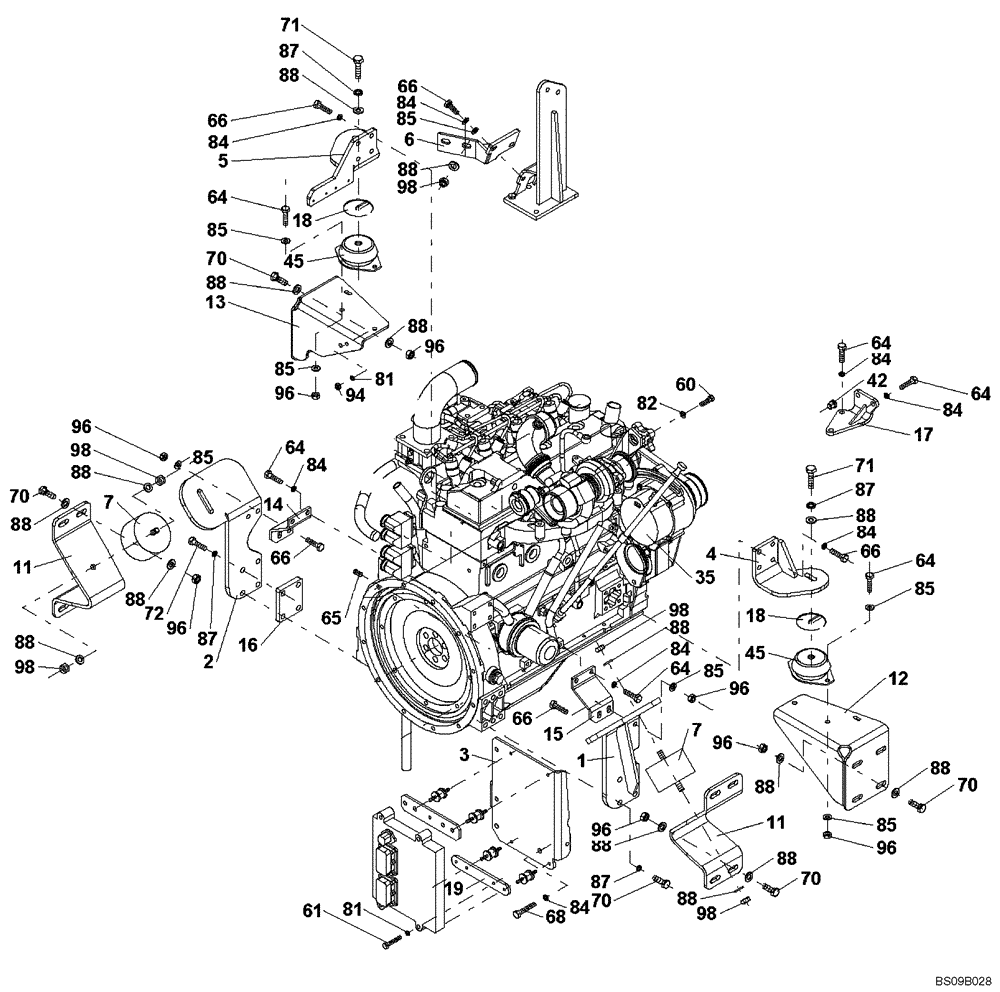

Запчасти Case SV210 (02-01[01]) - ENGINE INSTALLATION (A) (GROUP 106) (ND138823) (02) - ENGINE

REF

INSTRUCTION

ENGINE INSTALLATION (A) (ND138823) (GROUP 106)

1шт.

1

ND138848

BRACKET

Front Left

1шт.

2

ND138849

BRACKET

Front Right

1шт.

3

ND138850

HOLDER

1шт.

4

ND137236

BRACKET

1шт.

5

ND147289

BRACKET

, Serial Range: -NENTB2080

1шт.

5

47715309

BRACKET

, Start Serial: NENTB2081

1шт.

6

ND138863

HOLDER

Filter

1шт.

7

ND107210

SHOCK ABSORBER

2шт.

11

ND132355

BRACKET

Front

2шт.

12

ND138830

BRACKET

LH

1шт.

13

ND138831

BRACKET

RH

1шт.

14

ND138846

HOLDER

1шт.

15

ND138847

HOLDER

1шт.

16

ND138869

WASHER

1шт.

17

ND138861

HOLDER

1шт.

18

ND138065

WASHER

Qty Was 4

4-8шт.

19

ND138870

SUPPORT

1шт.

20

ND138859

HOLDER

1шт.

35

NSS

NOT SOLD SEPARAT

ENGINE CUMMINS; See Your Nearest Cummins Engine Dealer For Parts And Service

1шт.

42

ND136538

PLUG

1шт.

45

ND090028

RUBBER MOUNTING

2шт.

60

ND021296

BOLT

4шт.

61

ND021186

BOLT

2шт.

64

ND021302

BOLT

12шт.

65

ND024705

STUD

1шт.

66

ND021303

BOLT

26шт.

68

ND021196

BOLT

Replaces ND021197 Screw; Used On Some Models

2шт.

70

ND021311

BOLT

22шт.

71

ND021312

BOLT

2шт.

72

ND021313

BOLT

4шт.

81

ND035940

SPRING WASHER

4шт.

82

ND029285

WASHER

4шт.

84

ND035941

WASHER

32шт.

85

ND035826

WASHER

10шт.

87

ND035942

WASHER

10шт.

88

ND122456

WASHER

42шт.

94

ND021848

NUT

2шт.

96

ND034088

NUT

8шт.

98

ND034086

NUT

22шт.
