(01-05[01]) - FILTERS, QUICK REFERENCE (GROUP 547) (ND138865)

Запчасти Case SV210 (01-05[01]) - FILTERS, QUICK REFERENCE (GROUP 547) (ND138865) (00) - PICTORIAL INDEX

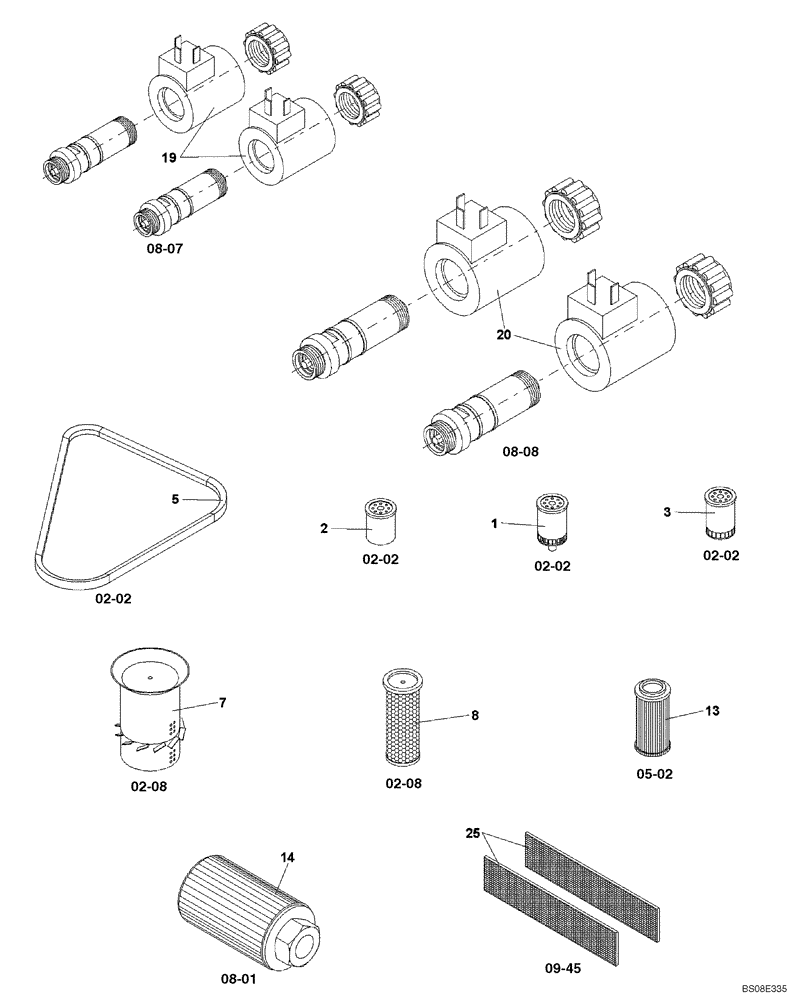

Схема запчастей Case SV210 - (01-05[01]) - FILTERS, QUICK REFERENCE (GROUP 547) (ND138865) (00) - PICTORIAL INDEX
02-02
08-08
05-02
3
02-02
2
02-08
09-45
02-02
8
02-02
13
08-07
1
20
19
14
25
5
02-08
08-01
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

FILTERS, QUICK REFERENCE (ND138865) (GROUP 547)

1шт.

1

ND137980

FUEL FILTER

1шт.

2

ND137979

FUEL FILTER

1шт.

3

87409203

ENGINE OIL FILTER

Replaces ND137978 Filter, Engine Oil

2шт.

5

ND137974

BELT,49.21" L

1шт.

7

ND131067

AIR FILTER

Outer

1шт.

8

ND131068

AIR FILTER

Inner

1шт.

13

ND126829

HYDRAULIC OIL FILTER

1шт.

14

ND067790

FILTER STRAINER

Suction

1шт.

19

ND067924

SOLENOID

2шт.

20

ND067925

SOLENOID

2шт.

25

ND137766

FILTER

Air; Replaces ND075260 Filter Used On Some Models

2шт.
