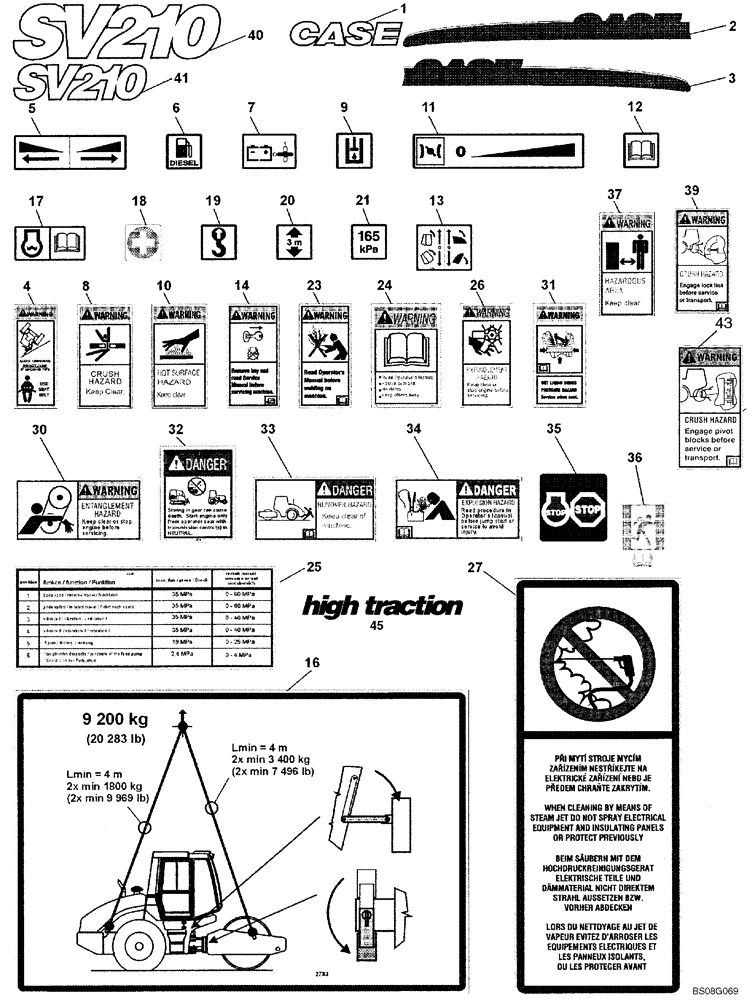

Запчасти Case SV210 (09-70[01]) - DECALS (GROUP 510 / 69 / 514) (ND104963) (ND111482) (ND137767) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

DECALS (ND104963) (GROUP 510)

1шт.

1

ND110456

DECAL

CASE LOGO

2шт.

2

ND110454

DECAL

CASE STRIPE

1шт.

3

ND110455

DECAL

CASE STRIPE

1шт.

4

ND106583

WARNING DECAL

Warning Use Seat Belt

1шт.

5

ND081629

DECAL

1шт.

6

ND081458

DECAL

Diesel Fuel

1шт.

7

ND081677

DECAL

Battery Disconnect

1шт.

8

ND106588

WARNING DECAL

Warning Crush Hazzard

2шт.

9

ND081465

DECAL

1шт.

10

ND106591

WARNING DECAL

Warning Hot Surface

1шт.

11

ND081590

DECAL

1шт.

12

ND081612

DECAL

Operators Manual

1шт.

13

ND081828

DECAL

Platform Hood Lift

1шт.

14

ND106592

WARNING DECAL

Warning Remove Key

1шт.

16

ND102912

DECAL

Lifting

1шт.

17

ND081459

DECAL

1шт.

18

ND081611

DECAL

First Aid

1шт.

19

ND081460

DECAL

Lifting Point

4шт.

20

ND081586

DECAL

Max Height

1шт.

21

ND104862

DECAL

Max Height

2шт.

23

ND106593

WARNING DECAL

Warning Read Operators Manual

1шт.

24

ND106584

WARNING DECAL

Warning Read Operators Manual

1шт.

25

ND081742

DECAL

System Pressure

1шт.

26

ND106576

WARNING DECAL

Warning Keep cCear

2шт.

27

ND081530

DECAL

Cleaning Machine

2шт.

30

ND106577

WARNING DECAL

Warning Entanglement

2шт.

31

ND106578

WARNING DECAL

Warning Hot Liquid

2шт.

32

ND106579

DANGER DECAL

Danger Starting Engine

1шт.

33

ND106580

DANGER DECAL

Danger Runover Hazzard

1шт.

34

ND106581

DANGER DECAL

Danger Battery Explosion

1шт.

35

ND106582

DECAL

Stop

1шт.

36

ND106585

DECAL

Emergency Exit

1шт.

37

ND106586

WARNING DECAL

Warning Hazzardous Area

2шт.

39

ND106589

WARNING DECAL

Warning Crush Hazzard

2шт.

40

ND110459

DECAL

Model

2шт.

41

ND110460

DECAL

Model

1шт.

43

ND106590

DECAL

Warning Crush Hazzard (GROUP 69)

2шт.

44

ND119495

DECAL

Tie Down; Not Illustrated

4шт.

45

ND135167

DECAL

High Traction

1шт.
