(09-48[01]) - SEAT ASSY (GROUP 158) (ND126721)

Запчасти Case SV210 (09-48[01]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS

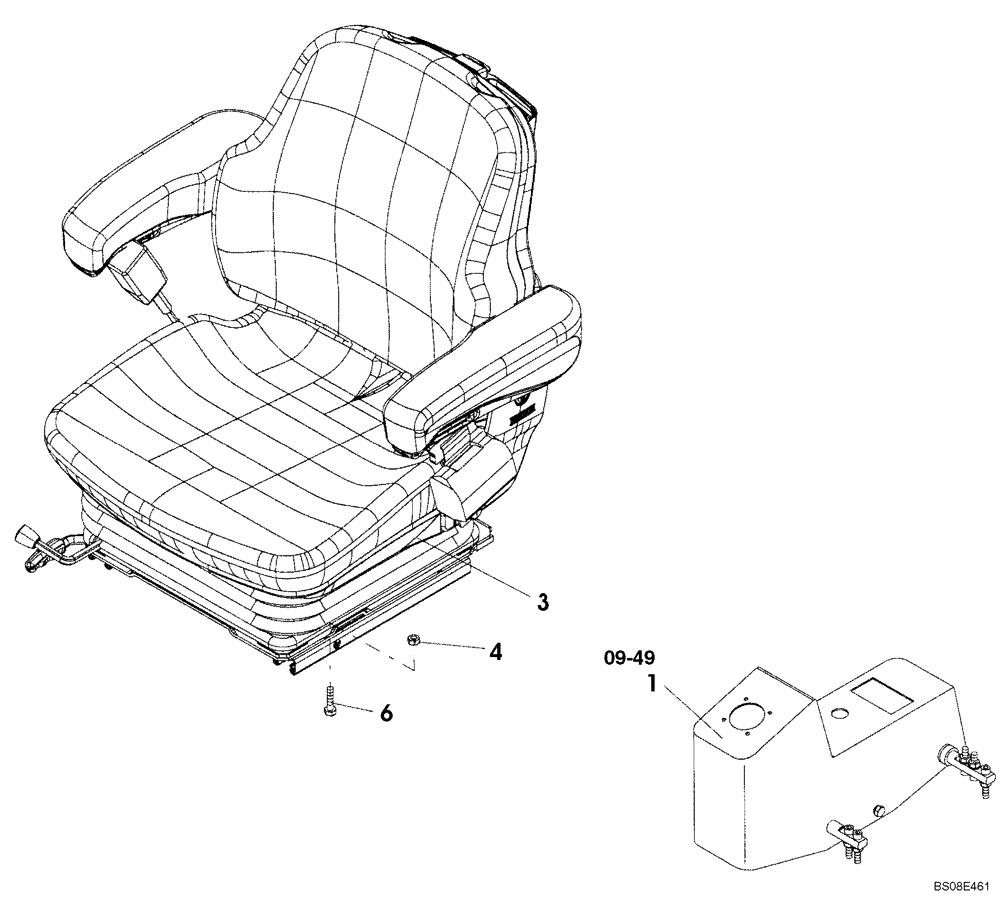

Схема запчастей Case SV210 - (09-48[01]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS
4
09-49
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT ASSY (ND126721) (GROUP 158)

1шт.

1

ND115395

PANEL

See Figure 09-49 (01) For Service Breakdown

1шт.

3

ND114822

DRIVER SEAT

Includes ND124384 "Operator Present" Seat Switch

1шт.

3-1

ND124384

LIMIT SWITCH

Seat Switch Not Illustrated

1шт.

4

ND027301

NUT

4шт.

6

ND029249

WASHER

4шт.
