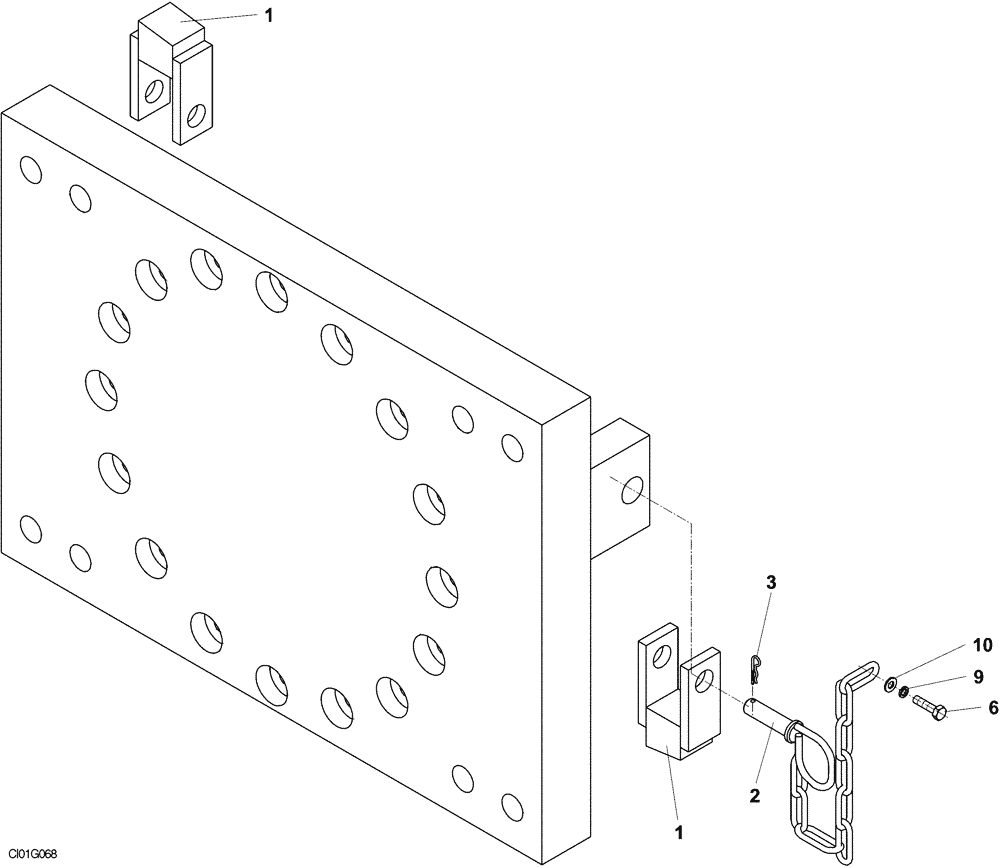

Запчасти Case SV210 (09-24[01]) - LOCK, LINKAGE JOINT (GROUP 68) (ND104289) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

LOCK, LINKAGE JOINT (ND104289) (GROUP 68)

1шт.

1

ND104331

BRACKET

2шт.

2

ND104332

PIN

2шт.

3

ND104389

COTTER PIN

2шт.

6

ND023792

BOLT

M5 x 16

2шт.

9

ND029308

WASHER

ID 5,1

2шт.

10

ND029247

WASHER

ID 5,3

2шт.
