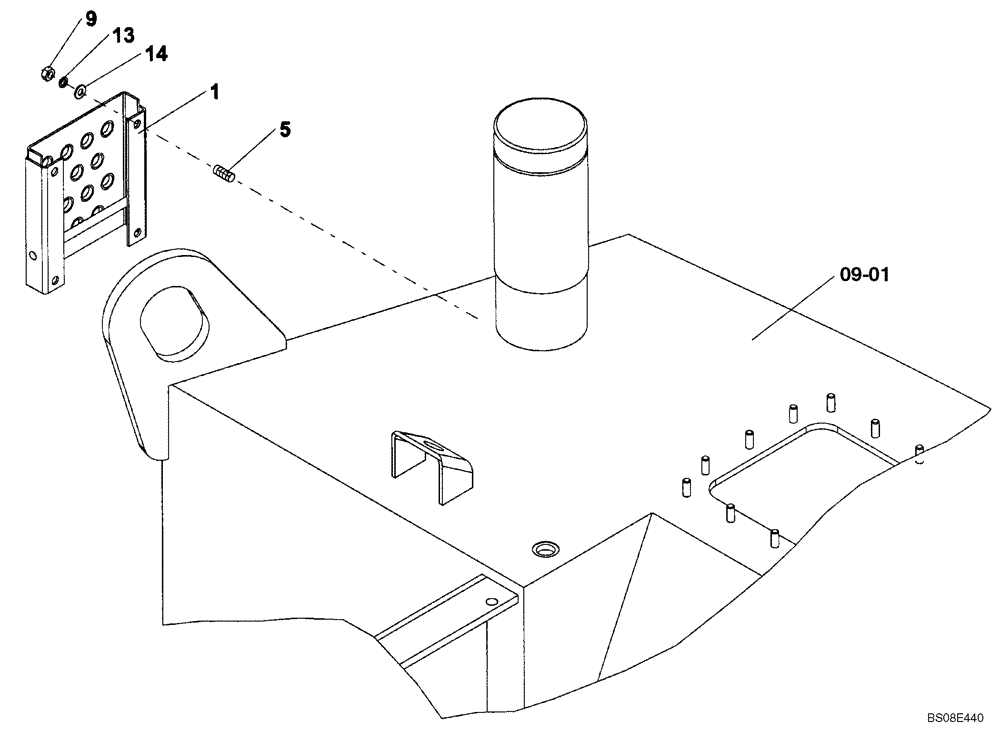

Запчасти Case SV210 (09-14[01]) - STEP, RH (GROUP 462) (ND131873) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

STEP, RH (ND131873) (GROUP 462)

1шт.

1

ND126768

STEP

1шт.

5

ND123239

BOLT

4шт.

9

ND034087

NUT

4шт.

13

ND035940

SPRING WASHER

4шт.

14

ND029249

WASHER

4шт.
