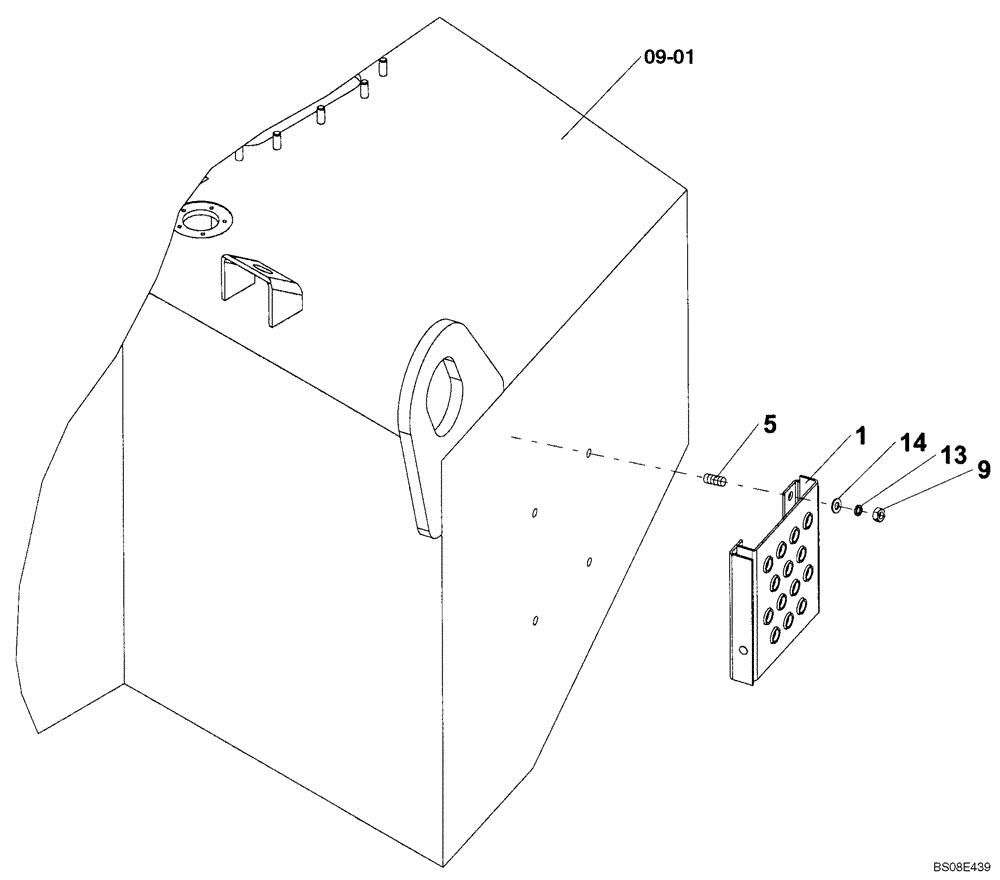

Запчасти Case SV210 (09-13[01]) - STEP, LH (GROUP 463) (ND132985) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

STEP, LH (ND132985) (GROUP 463)

1шт.

1

ND126768

STEP

1шт.

5

ND123239

BOLT

4шт.

9

ND034087

NUT

4шт.

13

ND035940

SPRING WASHER

Spring

4шт.

14

ND029249

WASHER

4шт.
