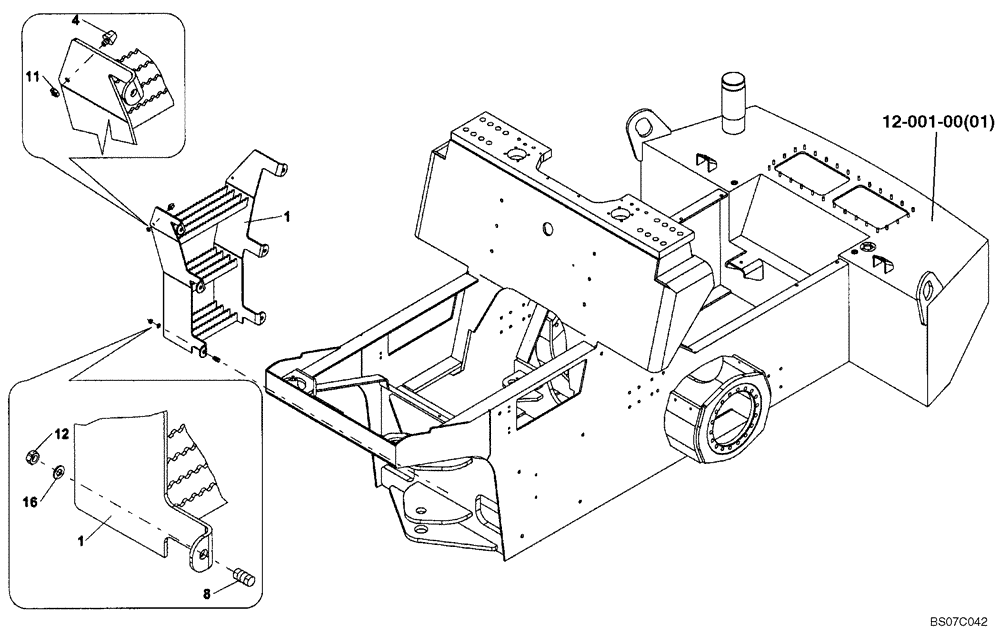

Запчасти Case SV210 (12-001-00[19]) - STEPS, PLATFORM ACCESS RH (GROUP 461) (ND131851) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

STAIRWAY ACCESS RH (ND131851) (GROUP 461)

1шт.

1

ND131850

STAIRWAY, RH

STEP

1шт.

4

ND079227

RUBBER BUMPER

1шт.

8

ND123609

BOLT

If Used

6шт.

11

ND021847

NUT

1шт.

12

ND034088

NUT

6шт.

16

ND035826

WASHER

6шт.
