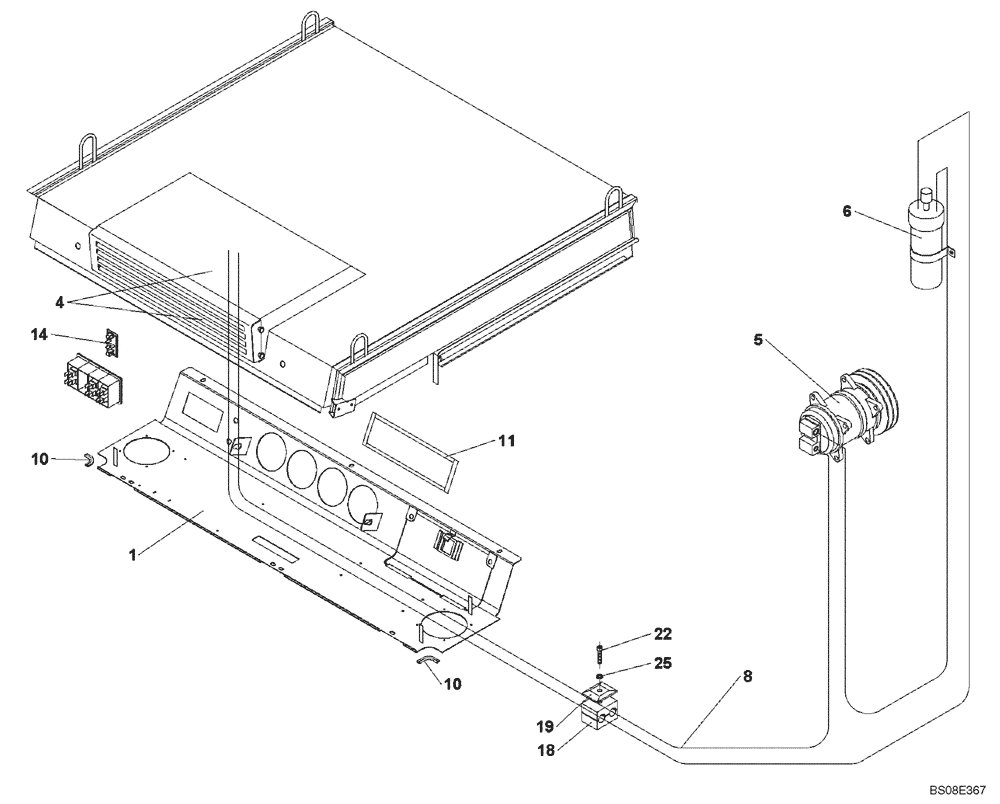

Запчасти Case SV210 (12-020-05[01]) - AIR CONDITIONING (GROUP 618) (ND139629) (09) - CHASSIS

REF

INSTRUCTION

AIR CONDITIONING (ND139629) (GROUP 618)

1шт.

1

ND139584

COVER

1шт.

4

ND136587

GRATE

1шт.

4

ND136690

AIR CONDITIONER

Kit, A/C Unit & Cab Parts

1шт.

5

ND136692

AIRCOND. COMPRESSOR

Kit, A/C Compressor - Engine Parts

1шт.

6

ND136693

RECEIVER-DRYER

Kit, A/C Condensor - Reciever Dryer, For Pressure Switch See 26

1шт.

8

ND136695

A/C HOSE

Kit

1шт.

10

ND078396

TRIM

1шт.

11

ND076085

TAPE

1шт.

14

ND065391

COVER

1шт.

18

ND061999

CLAMP

1шт.

19

ND062001

CLAMP

1шт.

22

ND024236

BOLT

4шт.

25

ND029248

WASHER

4шт.

26

47832019

PRESSURE SWITCH

1шт.
