(10-017-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792)

Запчасти Case SV210 (10-017-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792) (08) - HYDRAULICS

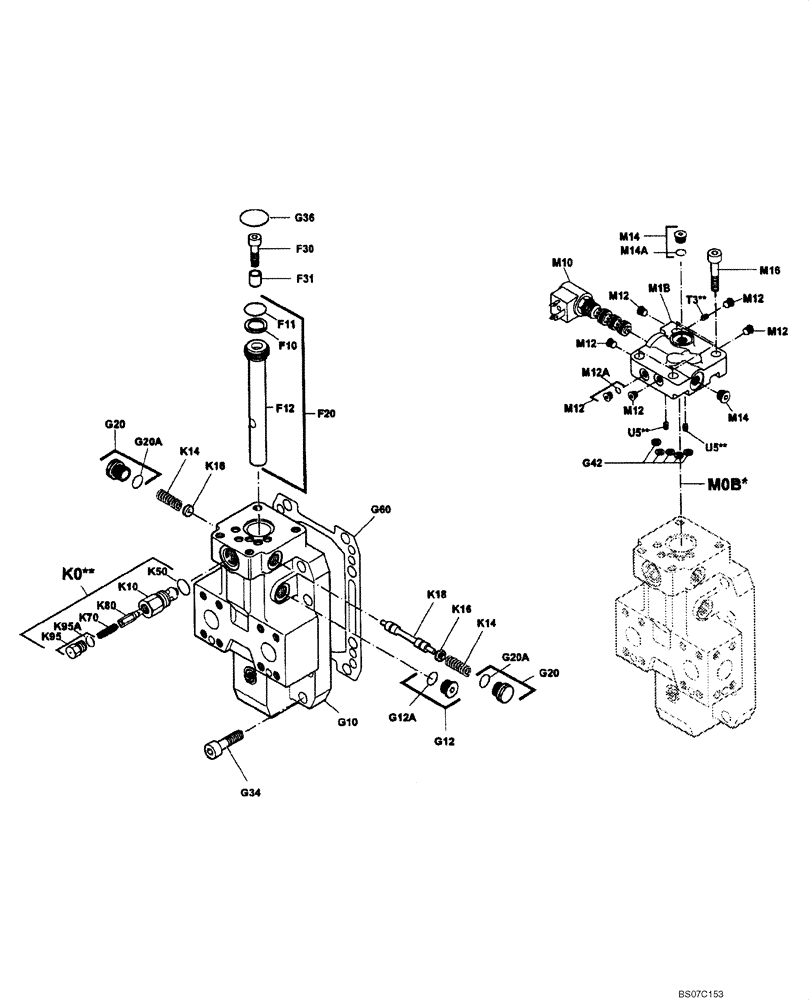

Схема запчастей Case SV210 - (10-017-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792) (08) - HYDRAULICS
k16
k14
f12
k50
f11
m12
m12
g60
m12
m1b
g42
m12a
f31
k95a
m16
k80
g20
f30
k10
m14
g20a
f20
k70
m12
k14
m10
g12
g36
k95
g10
g20
f10
m12
m14
k18
g34
g20a
m14a
m12
g12a
k16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

REGULATOR, REAR TRAVEL MOTOR (ND090792) (GROUP 95-2 B)

1шт.

a0

ND102436

SEAL KIT

1шт.

c05

ND102543

CYLINDER BLOCK

1шт.

c10

ND102472

PLATE

Bearing

1шт.

f10

ND102418

SEAL

Packing

1шт.

f11

ND102392

O-RING

1шт.

f12

ND102404

PISTON

1шт.

f20

ND102421

PISTON

1шт.

g10

ND102403

COVER

1шт.

g12

ND102474

PLUG

1шт.

g20

ND102422

PLUG

2шт.

g34

ND102498

BOLT

8шт.

g36

ND102355

O-RING

1шт.

g42

ND102552

SEAL

Packing

5шт.

k10

ND103353

PLUG

1шт.

k14

ND103356

SPRING

2шт.

k16

ND103355

SPRING CUP

Retainer

2шт.

k18

ND102356

PISTON

1шт.

k50

ND102298

O-RING

1шт.

m1b

ND102446

VALVE BLOCK (USED)

Plate

1шт.

m10

ND102391

SOLENOID VALVE

Electromagnet

1шт.

m12

ND102394

PLUG

6шт.

m14

ND102474

PLUG

2шт.

m16

ND102390

BOLT

4шт.

k0nn

ND103354

PLUG

1шт.

m0b2

ND102450

CONTROL VALVE

Board

1шт.

t3u3

ND102416

PORT

Orfice Plate

1шт.

u5u3

ND102448

PORT

Orfice Plate

2шт.
