(10-016-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 30-6 B) (ND090942)

Запчасти Case SV210 (10-016-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 30-6 B) (ND090942) (08) - HYDRAULICS

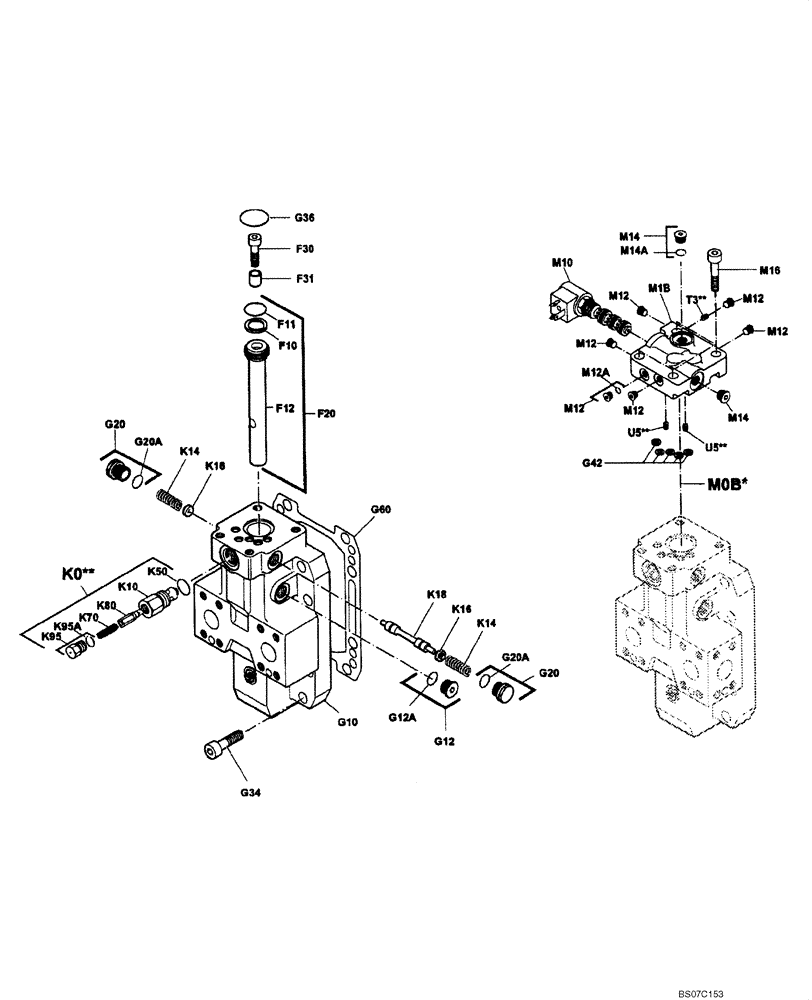

Схема запчастей Case SV210 - (10-016-00[02]) - REGULATOR, REAR TRAVEL MOTOR (GROUP 30-6 B) (ND090942) (08) - HYDRAULICS
m14
k16
k80
m12
k50
k70
m14
m12a
g12a
k14
k16
f12
m10
f30
g36
m12
f20
f31
k18
m12
m12
g20a
g20
k14
m14a
g42
f10
k95a
g10
k10
g20
f11
g20a
k95
m12
m1b
g34
g60
m12
m16
g12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

REGULATOR, REAR TRAVEL MOTOR Incl. Ref.All Except M0B2 (ND090942) (GROUP 30-6B)

1шт.

f10

ND102418

SEAL

1шт.

f11

ND102392

O-RING

1шт.

f12

ND102404

PISTON

1шт.

f20

ND102421

PISTON

Incl. Ref. F10, F11, F12

1шт.

g10

ND102403

COVER

1шт.

g12

ND102474

PLUG

1шт.

g20

ND102422

PLUG

2шт.

g34

ND102498

BOLT

8шт.

g36

ND102355

O-RING

1шт.

g42

ND102552

SEAL

5шт.

g60

ND102376

GASKET

1шт.

g80

ND102317

PLUG

2шт.

k10

ND102456

HYD CONNECTOR

1шт.

k14

ND102555

SPRING

2шт.

k16

ND102365

SPRING CUP

2шт.

k18

ND102356

PISTON

1шт.

k50

ND102298

O-RING

1шт.

k70

ND102430

SPRING

1шт.

k80

ND102431

ROLLER BEARING

1шт.

k95

ND102438

PLUG

1шт.

m1b

ND102446

VALVE BLOCK (USED)

1шт.

m10

ND102391

SOLENOID VALVE

1шт.

m12

ND102394

PLUG

6шт.

m14

ND102474

PLUG

2шт.

m16

ND102390

BOLT

4шт.

k0a0

ND102439

HYDRAULIC VALVE

Incl. Ref. K10 & K50

1шт.

m0b2

ND102450

CONTROL VALVE

Incl. Ref. M10, M12, M14, M16, M1B, T3U3, U5U3

1шт.

t3u3

ND102416

PORT

1шт.

u5u3

ND102448

PORT

2шт.
