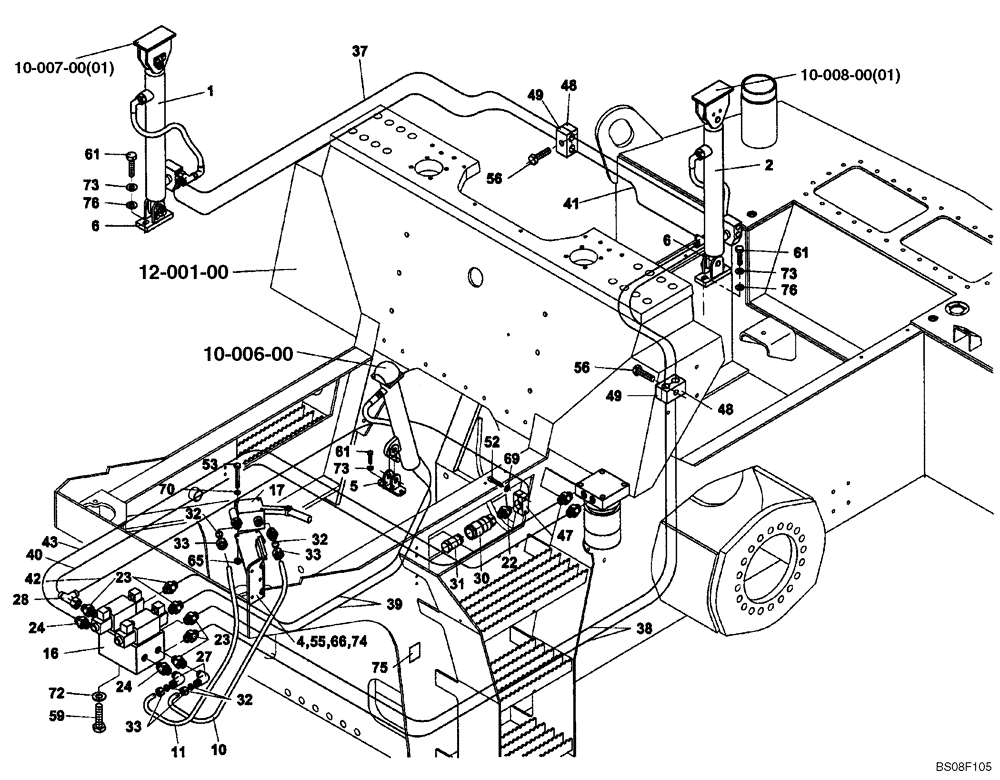

Схема запчастей Case SV210 - (10-005-00[01]) - HYDRAULICS - TILTING, HOOD AND PLATFORM (GROUP 380) (ND132341) (08) - HYDRAULICS
55
61
76
56
42
33
69
23
70
16
24
33
30
10-006-00
43
10
73
4
6
53
23
10-008-00(01)
48
37
56
24
73
72
10-007-00(01)
75
65
22
27
39
17
48
38
61
32
40
49
11
66
5
6
31
1
47
32
2
32
76
61
33
12-001-00
49
73
41
28
52
74
59
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HOOD AND PLATFORM TILTING (ND132341) (GROUP 380)

1шт.

1

ND103127

SERVICE KIT

ASSY RH; See Figure 10-007-00 (01) For Service Breakdown

1шт.

2

ND104300

CYLINDER

ASSY LH; See Figure 10-008-00 (01) For Service Breakdown

1шт.

3

ND103132

SERVICE KIT

1шт.

4

ND126729

HOLDER

1шт.

5

ND132357

BRACKET

BRACKET

1шт.

6

ND126728

BRACKET

2шт.

10

ND132370

HYD TUBE

PIPE

1шт.

11

ND132371

HYD TUBE

PIPE

1шт.

16

ND067789

BLOCK

Includes ND067925 - Solenoid

1шт.

ND067925

SOLENOID

Not Illustrated

2шт.

17

ND067870

HYDRAULIC PUMP

Hand

1шт.

22

ND062220

HYD CONNECTOR

1шт.

23

ND062233

HYD CONNECTOR

6шт.

24

ND062234

HYD CONNECTOR

2шт.

27

ND062414

ELBOW

2шт.

28

ND062313

HYD CONNECTOR

1шт.

30

ND112941

QUICK MALE COUPLING

1шт.

31

ND062386

COVER

1шт.

32

ND062038

SEAL

4шт.

33

ND062045

NUT

4шт.

37

ND102876

HOSE,750.00 mm

1шт.

38

ND102877

HOSE,1200.00 mm

2шт.

39

ND102879

HOSE,350.00 mm

2шт.

40

ND102095

HOSE,800.00 mm

1шт.

41

ND102875

HOSE,750.00 mm

1шт.

42

ND127245

HOSE

1шт.

43

ND102868

HOSE

1шт.

47

ND064809

CLAMP

1шт.

48

ND064851

SLEEVE

2шт.

49

ND064807

CLAMP

2шт.

52

ND024234

BOLT

M6 x 30

2шт.

53

ND021179

BOLT

M6 x 70

3шт.

55

ND021182

BOLT

3шт.

56

ND021184

BOLT

M8 x 35

2шт.

59

ND021196

BOLT

2шт.

61

ND021310

BOLT

2шт.

65

ND021847

NUT

M6

3шт.

66

ND034087

NUT

3шт.

69

ND029248

WASHER

ID 6,4

2шт.

70

ND029309

SPRING WASHER

ID 6,1

3шт.

72

ND035941

WASHER

ID 10

2шт.

73

ND035942

WASHER

ID 12

4шт.

74

ND035940

SPRING WASHER

3шт.

75

ND081828

DECAL

Platform Hood Tilt

1шт.

76

ND122456

WASHER

4шт.
