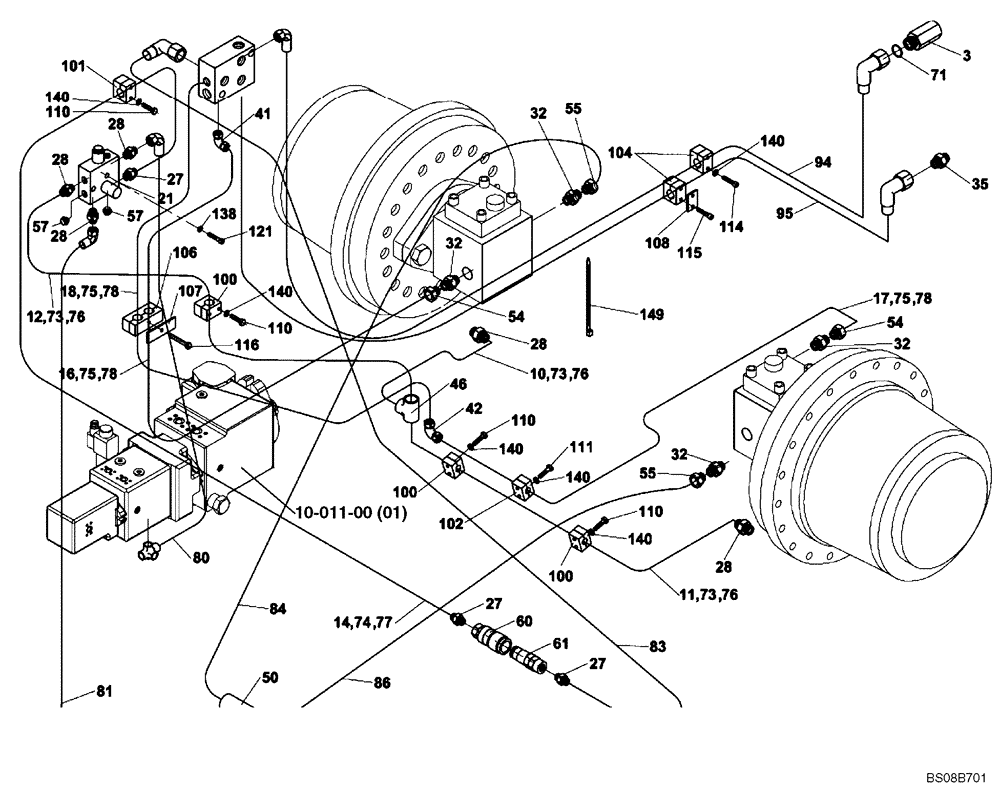

Запчасти Case SV210 (10-004-00[01]) - HYDRAULIC SYSTEM OF TRAVEL, REAR (A) (GROUP 305) (ND132337) (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, REAR (ND132337) (GROUP 305 A)

1шт.

3

ND031345

HYD CONNECTOR

1шт.

10

ND132365

HYD TUBE

PIPE

1шт.

11

ND132366

HYD TUBE

PIPE

1шт.

12

ND132367

HYD TUBE

PIPE

1шт.

14

ND127573

HYD TUBE

1шт.

16

ND132368

HYD TUBE

PIPE

1шт.

17

ND132369

HYD TUBE

PIPE

1шт.

18

ND132373

HYD TUBE

PIPE

1шт.

21

ND123634

VALVE BLOCK

Includes ND067924 Solenoid and ND115381 Brake Pressure Switch

1шт.

21

ND067924

SOLENOID

Not Illustrated

2шт.

21

ND115381

PRESSURE SWITCH

PRESSURE SWITCH; Brake (Not Illustrated)

1шт.

27

ND062173

HYD CONNECTOR

3шт.

28

ND062153

HYD CONNECTOR

6шт.

32

ND062135

HYD CONNECTOR

5шт.

35

ND062224

HYD CONNECTOR

1шт.

41

ND062367

HYD CONNECTOR

Elbow; If Used

1шт.

42

ND062255

90 ELBOW

1шт.

46

ND062294

TEE

1шт.

50

ND062335

TEE

1шт.

54

ND062391

REDUCER

2шт.

55

ND062433

RESTRICTOR

3шт.

57

ND062452

PLUG

2шт.

60

ND112940

COUPLING, QUICK, FEM

1шт.

61

ND112941

QUICK MALE COUPLING

1шт.

71

ND073366

WASHER

1шт.

73

ND062039

SEAL

6шт.

74

ND062033

SLEEVE

2шт.

75

ND062037

SEAL

6шт.

76

ND062046

NUT

6шт.

77

ND062047

NUT

2шт.

78

ND062058

NUT

6шт.

80

ND134327

HOSE

Replaces ND131056 Hose and ND134324 Hose

1шт.

81

ND134693

HOSE

Replaces ND131057 Hose

1шт.

83

ND102239

HOSE

1шт.

84

ND134328

HOSE

Replaces ND107206 Hose

1шт.

86

ND107207

HOSE

1шт.

94

ND102226

HOSE

1шт.

95

ND131059

HOSE

HOSE

1шт.

100

ND064797

SLEEVE

3шт.

101

ND064786

CLAMP

1шт.

102

ND064799

CLAMP

3шт.

104

ND064801

SLEEVE

2шт.

106

ND064802

SLEEVE

1шт.

107

ND064807

CLAMP

1шт.

108

ND064805

COVER

If Used

1шт.

110

ND024231

BOLT

5шт.

111

ND024233

BOLT

4шт.

114

ND024238

BOLT

Qty Was 4

2-4шт.

115

ND021178

BOLT

If Used

2шт.

116

ND021184

BOLT

1шт.

121

ND024264

BOLT

2шт.

138

ND035941

WASHER

4шт.

140

ND029248

WASHER

Qty Was 17

15-17шт.

149

ND106910

STRAP

15шт.
