(10-003-01[02]) - HYDRAULIC LINES - FRONT DRUM DRIVE, STANDARD DRUM DRIVE (GROUP 310) (ND109730)

Запчасти Case SV210 (10-003-01[02]) - HYDRAULIC LINES - FRONT DRUM DRIVE, STANDARD DRUM DRIVE (GROUP 310) (ND109730) (08) - HYDRAULICS

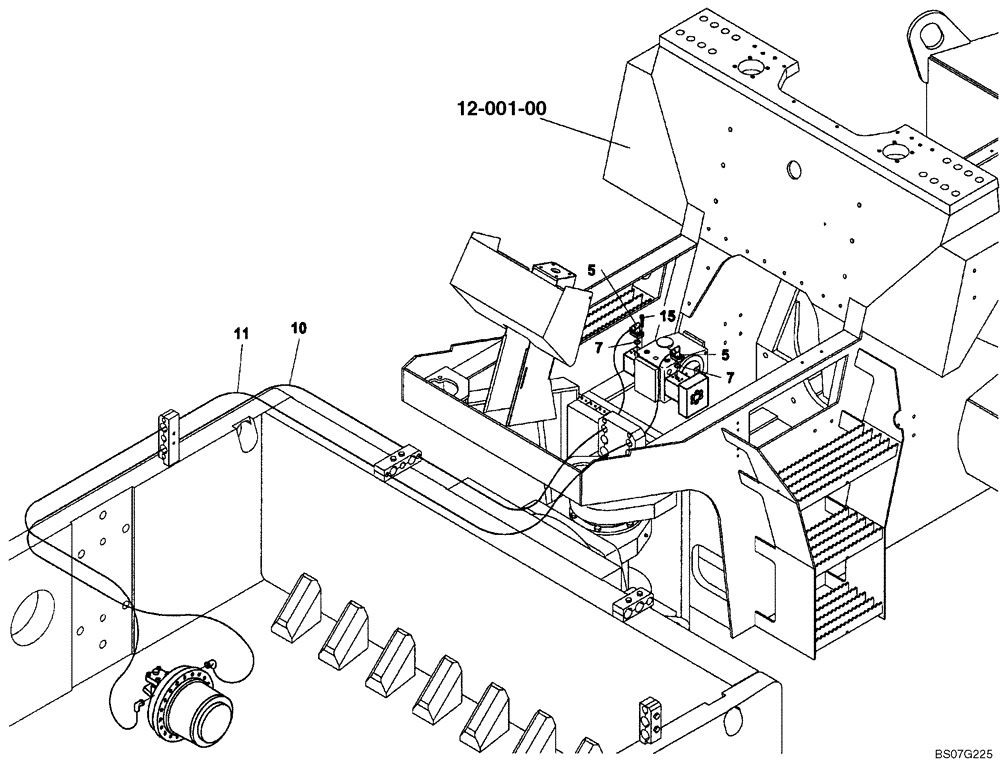

Схема запчастей Case SV210 - (10-003-01[02]) - HYDRAULIC LINES - FRONT DRUM DRIVE, STANDARD DRUM DRIVE (GROUP 310) (ND109730) (08) - HYDRAULICS
12-001-00
15
7
10
7
5
11
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC LINES, FRONT DRUM DRIVE (ND109730) (GROUP 310)

1шт.

5

ND062008

HALF-COLLAR

4шт.

7

ND079933

O-RING

2шт.

10

ND102230

HOSE,2800.00 mm

1шт.

11

ND102231

HOSE,3150.00 mm

1шт.

15

ND024259

BOLT

8шт.
