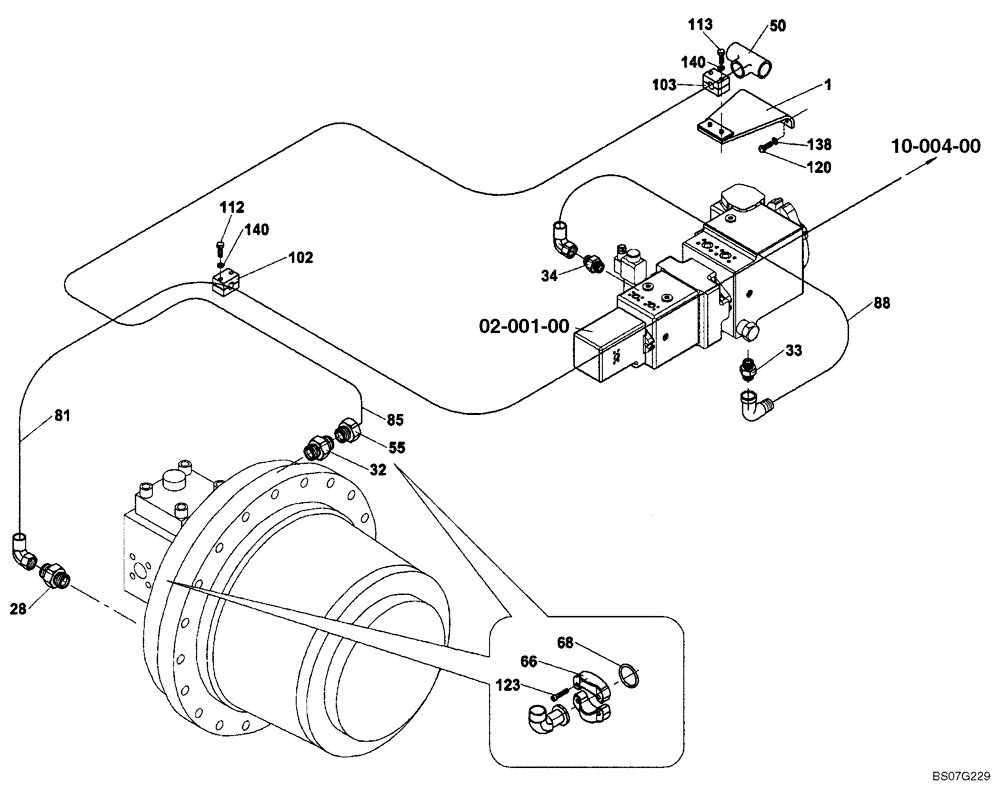

Запчасти Case SV210 (10-003-00[01]) - HYDRAULIC SYSTEM OF TRAVELTRAVEL, DRUM (B) (GROUP 305) (ND132337) (08) - HYDRAULICS

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (ND132337) (GROUP 305 B)

1шт.

1

ND103147

SUPPORT

1шт.

28

ND062153

HYD CONNECTOR

6шт.

32

ND062135

HYD CONNECTOR

5шт.

33

ND062136

HYD CONNECTOR

1шт.

34

ND062138

HYD CONNECTOR

1шт.

50

ND062335

TEE

1шт.

55

ND062433

RESTRICTOR

3шт.

66

ND062008

HALF-COLLAR

4шт.

68

ND079933

O-RING

2шт.

81

ND134693

HOSE

Replaces ND131057 Hose

1шт.

85

ND104850

HOSE

1шт.

88

ND102232

HOSE,900.00 mm

1шт.

102

ND064799

CLAMP

3шт.

103

ND064810

SLEEVE

1шт.

112

ND024235

BOLT

2шт.

113

ND024236

BOLT

2шт.

120

ND021197

BOLT

2шт.

123

ND034059

BOLT

8шт.

138

ND035941

WASHER

4шт.

140

ND029248

WASHER

Qty Was 17

15-17шт.
