(09-001-01[01]) - HYDRAULIC ANTI-SLIP HIGH TRACTION (GROUP 319) (ND132339)

Запчасти Case SV210 (09-001-01[01]) - HYDRAULIC ANTI-SLIP HIGH TRACTION (GROUP 319) (ND132339) (07) - BRAKES

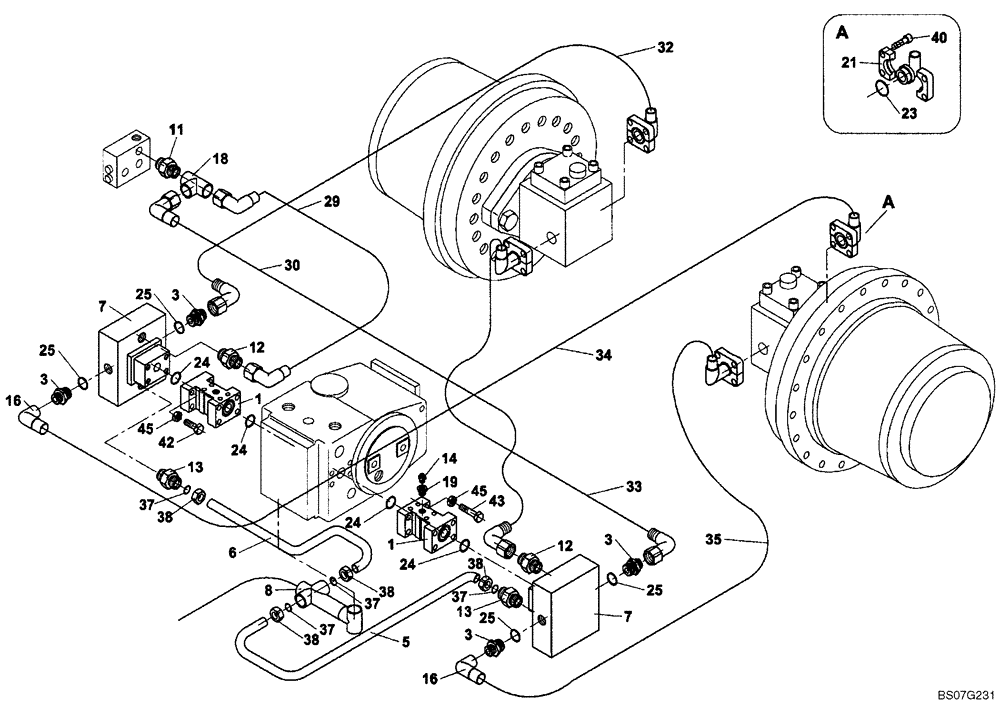

Схема запчастей Case SV210 - (09-001-01[01]) - HYDRAULIC ANTI-SLIP HIGH TRACTION (GROUP 319) (ND132339) (07) - BRAKES
3
30
24
8
7
14
3
3
37
37
38
24
25
19
32
16
42
35
38
40
37
11
45
34
37
38
23
38
25
18
13
24
33
43
21
29
5
6
7
24
13
1
12
45
16
12
1
25
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC ANTI-SLIP CONTROL HIGH TRACTION (ND132339) (GROUP 319)

1шт.

1

ND109755

COUPLING BLOCK

2шт.

3

ND052874

HYD CONNECTOR

4шт.

5

ND120344

PIPE

1шт.

6

ND120345

PIPE

1шт.

7

ND090925

VALVE

2шт.

8

ND131064

CONNECTING PIPE

1шт.

11

ND062154

HYD CONNECTOR

1шт.

12

ND062156

HYD CONNECTOR

2шт.

13

ND062137

HYD CONNECTOR

2шт.

14

ND062176

CONNECTING PIPE

2шт.

16

ND062300

ELBOW

3шт.

18

ND062403

TEE

1шт.

19

ND062423

REDUCING PIECE

2шт.

21

ND062008

HALF-COLLAR

8шт.

23

ND079933

O-RING

4шт.

24

ND079934

O-RING

4шт.

25

ND079939

O-RING

4шт.

29

ND061510

HOSE,500.00 mm

1шт.

30

ND135014

HOSE

Replaces ND102240 Hose

1шт.

32

ND134330

HOSE

Replaces ND104853 Hose

1шт.

33

ND134331

HOSE

Replaces ND109096 Hose

1шт.

34

ND133993

HOSE

Replaces ND104854 Hose

1шт.

35

ND134329

HOSE

Replaces ND109095 Hose

1шт.

37

ND062039

SEAL

4шт.

38

ND062046

NUT

4шт.

40

ND034059

BOLT

16шт.

42

ND111454

BOLT

8шт.

43

ND111455

BOLT

8шт.

45

ND109085

NUT

16шт.
