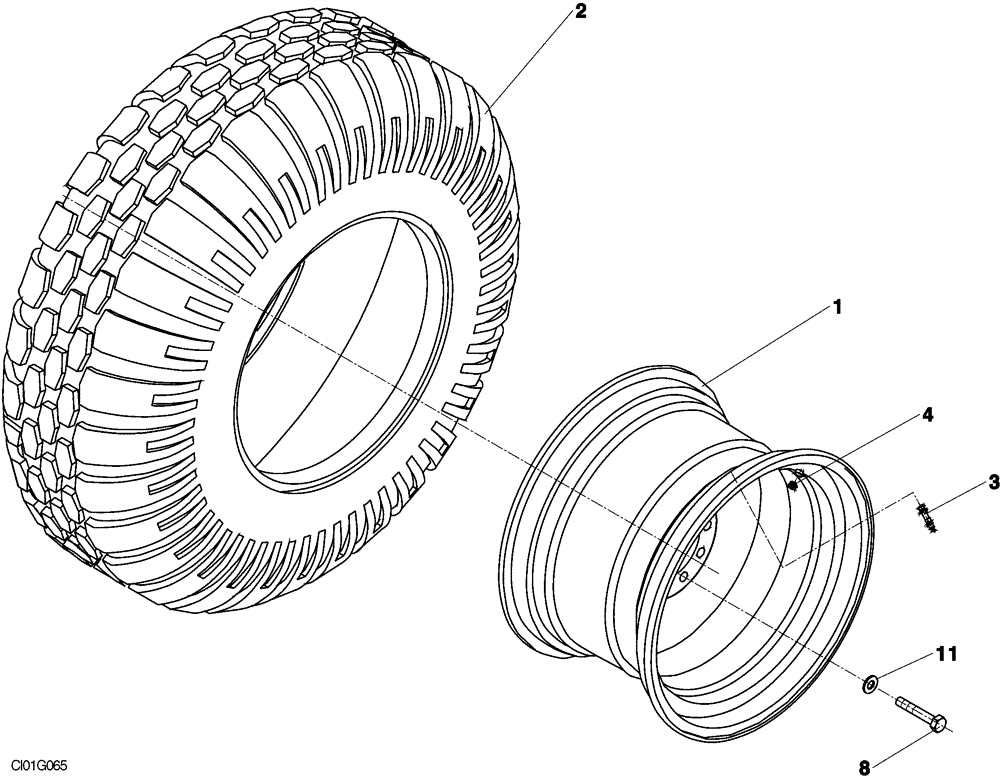

Запчасти Case SV210 (07-004-00[01]) - WHEELS, REAR (ND133166) (GROUP 43) (06) - POWER TRAIN

REF

INSTRUCTION

WHEELS, REAR (ND133166) (GROUP 43)

1шт.

1

ND104306

RIM

2шт.

2

NSS

NOT SOLD SEPARAT

PNUEMATIC TIRE

2шт.

3

ND063223

VALVE

2шт.

4

ND062420

PLUG

2шт.

8

ND021332

BOLT

M16 x 45

36шт.

11

ND035943

WASHER

ID 16

36шт.
