(02-001-00[02]) - ENGINE INSTALLATION (B) (GROUP 105) (ND132343)

Запчасти Case SV210 (02-001-00[02]) - ENGINE INSTALLATION (B) (GROUP 105) (ND132343) (02) - ENGINE

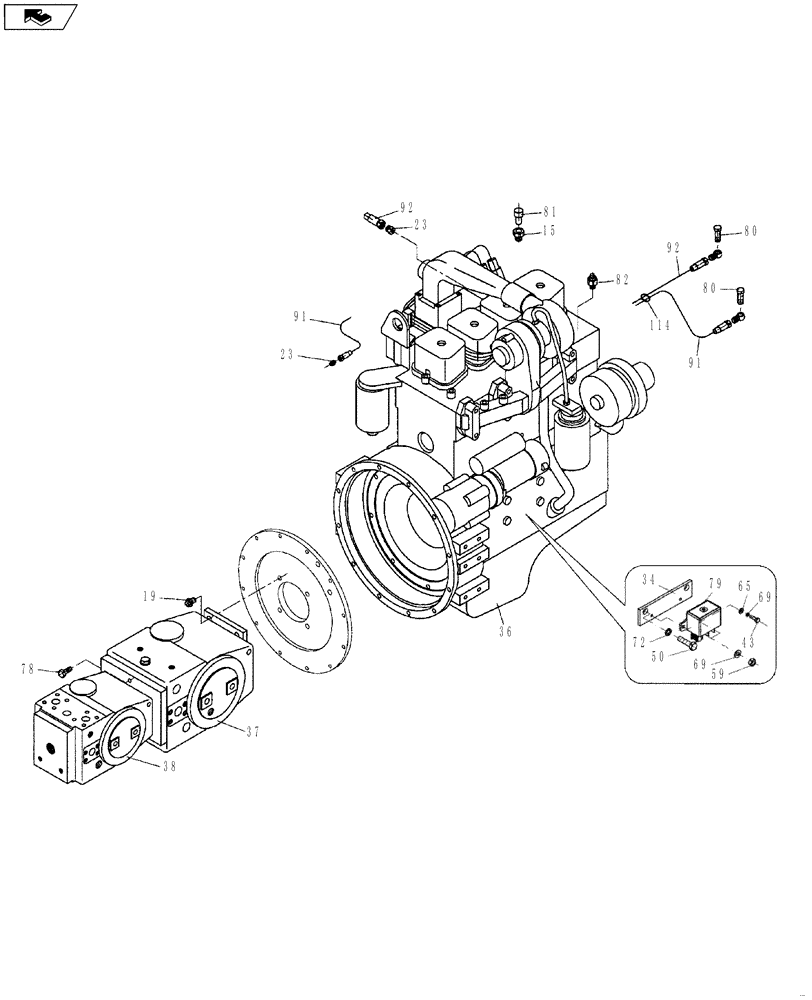

Схема запчастей Case SV210 - (02-001-00[02]) - ENGINE INSTALLATION (B) (GROUP 105) (ND132343) (02) - ENGINE
home
114
50
80
38
69
23
91
81
80
91
78
69
79
43
82
37
34
72
92
15
92
23
36
59
19
65
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ENGINE MOUNTING (ND132343) (GROUP 105 B)

1шт.

15

ND028174

HYD CONNECTOR

1шт.

19

ND118093

BOLT

4шт.

23

ND062207

HYD CONNECTOR

1шт.

30

ND053059

HYD CONNECTOR

1шт.

34

ND146191

BRACKET

Use With Relay ND145328

1шт.

36

REF

INSTRUCTION

ENGINE, CUMMINS ND126833; See Your Nearest Cummins Engine Dealer For Parts And Service

1шт.

36-2

ND118471

FUEL FILTER

Not Illustrated

1шт.

37

REF

INSTRUCTION

PUMP, HYDROSTATIC; See Figure 10-011-00 (01) For Service Breakdown

1шт.

38

REF

INSTRUCTION

PUMP, HYDRAULIC; See Figure 10-011-00 (01) For Service Breakdown

1шт.

39

ND139919

O-RING

Not Illustrated; Located Between Where Items 37 And 38 Join Together

1шт.

43

ND021287

BOLT,M8 x 16

M8 x 16

2шт.

50

ND021309

BOLT,M12 x 25

M12 x 25

2шт.

59

ND027300

NUT

2шт.

65

ND029248

WASHER

4шт.

70

ND035940

SPRING WASHER

ID 8

2шт.

72

ND035942

WASHER

ID 12

15шт.

78

ND104175

BOLT

2шт.

79

ND145328

RELAY,24V

24V Starter

1шт.

80

ND062457

BOLT

Includes Bolt, Banjo Fitting, and Sealing Washer

2шт.

81

ND067921

SENSOR

Oil Pressure

1шт.

82

ND098755

SENSOR

Sending Unit

1шт.

91

ND129031

HOSE

1шт.

92

ND129032

HOSE

1шт.

114

ND078445

SECURING STRAP

200mm

5шт.
