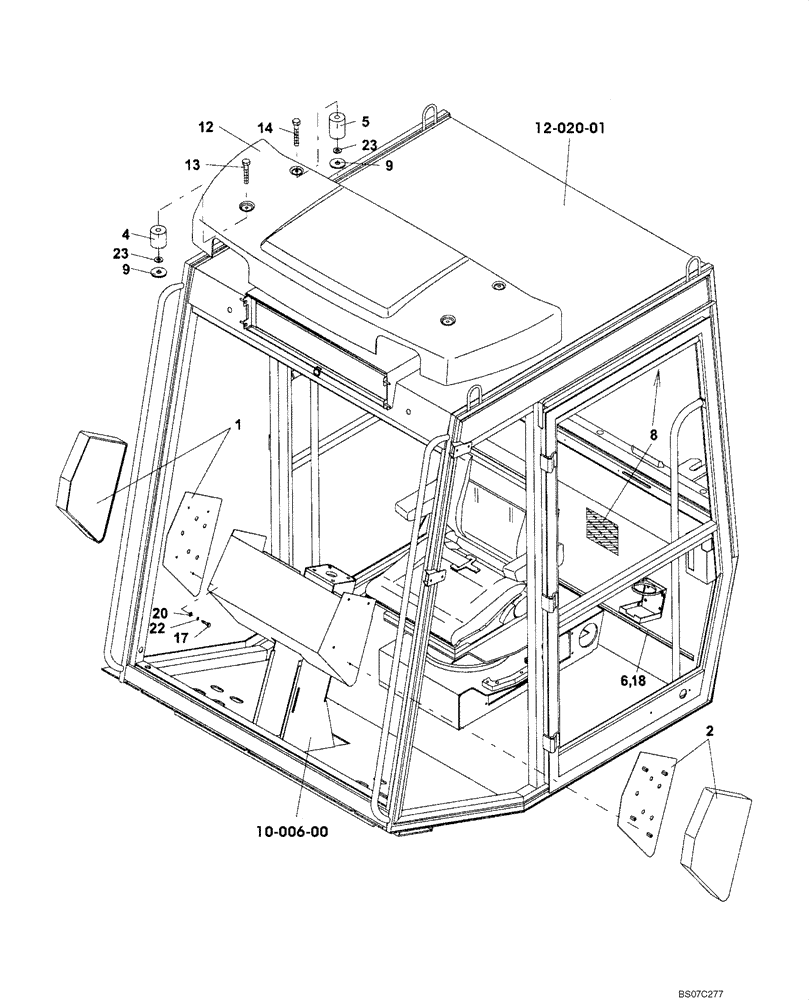

Запчасти Case SV210 (12-020-00[01]) - TRIM, CAB (GROUP 167) (ND104884) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

TRIM, CAB (ND104884) (GROUP 167)

1шт.

1

ND103156

COVER

RH

1шт.

2

ND103157

COVER

LH

1шт.

4

ND122017

SPACER

Bushing

2шт.

5

ND122018

SPACER

Bushing

2шт.

6

ND103453

BAR

1шт.

8

ND130543

TRIM PANEL

Leather Imitation

1шт.

9

ND104948

PACKING RING

Rubber

8шт.

12

ND104186

PROTECTOR

Headlamp Cover

1шт.

13

ND021200

BOLT

2шт.

14

ND110936

BOLT

2шт.

17

ND021290

BOLT

M6 x 25

8шт.

18

ND024967

SELF-TAP SCREW

M4 x 16 Self Tapping

4шт.

20

ND029248

WASHER

ID 6,4

8шт.

22

ND029309

SPRING WASHER

ID 6,1 Spring

8шт.

23

ND029286

WASHER

ID 11,5 For Wood

4шт.

25

ND110461

DECAL

Symbol

1шт.
