(12-013-03[00]) - SEAT ASSY (GROUP 158) (ND126721)

Запчасти Case SV210 (12-013-03[00]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS

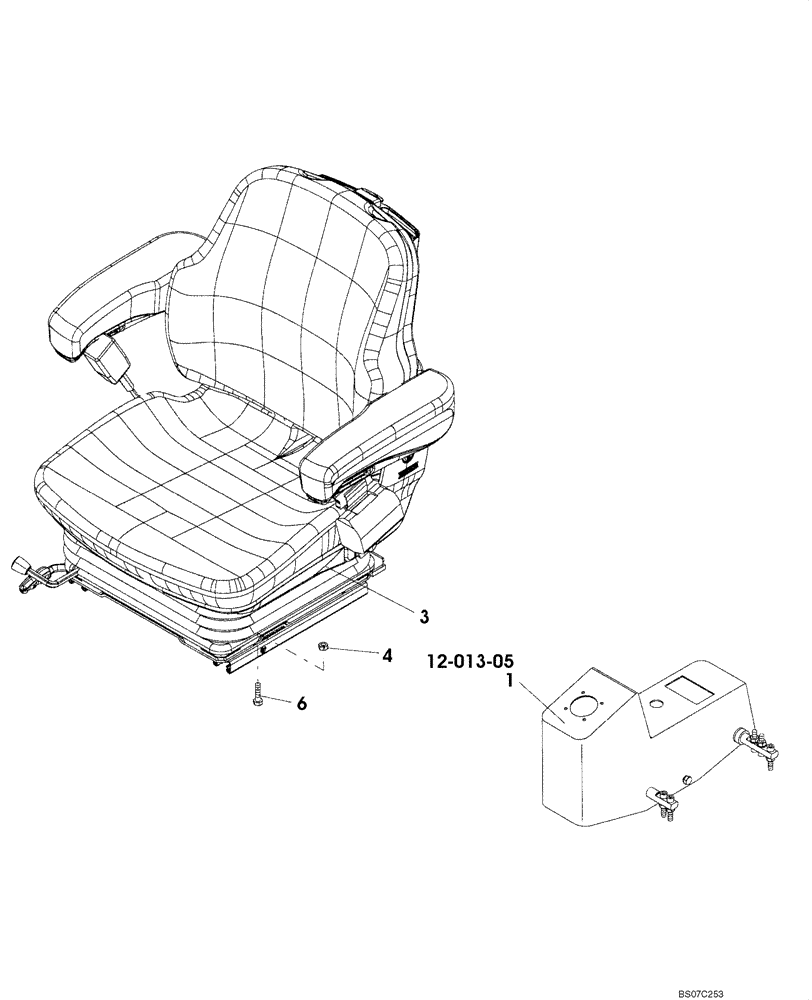

Схема запчастей Case SV210 - (12-013-03[00]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS
3
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SEAT (ND126721) (GROUP 158)

1шт.

1

ND115395

PANEL

See Figure 12-013-05 (00) For Service Breakdown

1шт.

3

ND031878

DRIVER SEAT

Until PIN : DDD000829, Does Not Include "Operator Present" Seat Switch

1шт.

3

ND114822

DRIVER SEAT

PIN : DDD000830, And After Includes "Operator Present" Seat Switch ND124384

1шт.

ND124384

LIMIT SWITCH

"Operator Present" Seat Switch Not Illustrated

1шт.

4

ND027301

NUT

4шт.

6

ND029249

WASHER

4шт.

Выбрано товаров: 7
