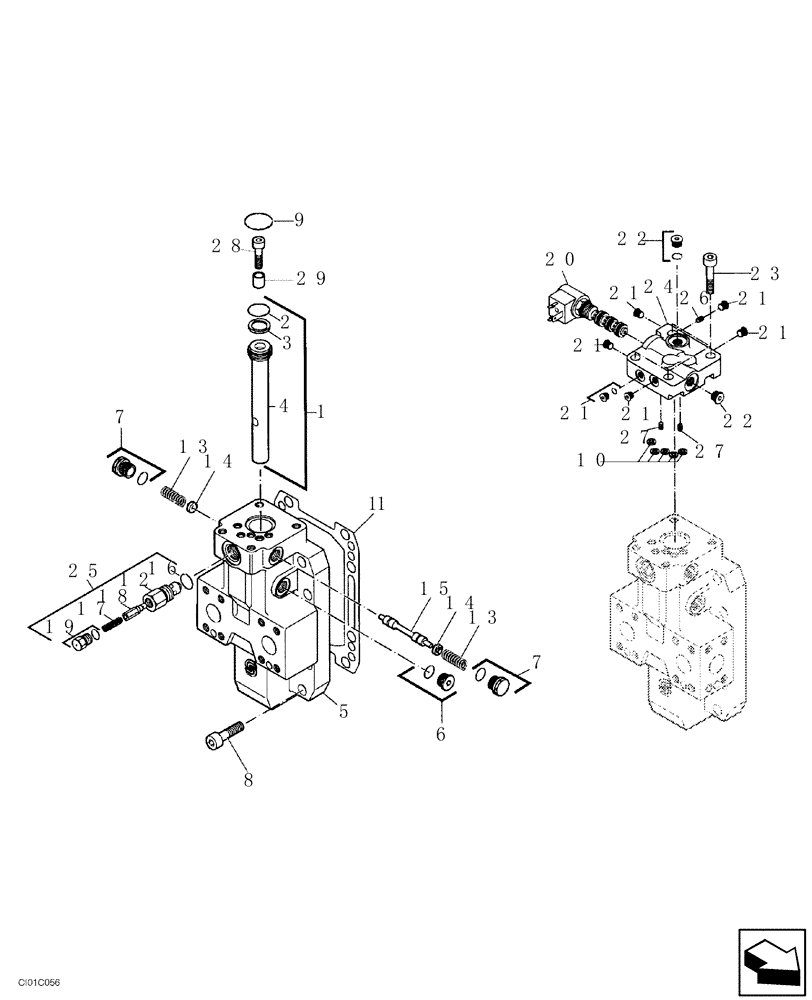

Запчасти Case SV210 (10-019-00[01]) - TRAVEL MOTOR - REGULATOR - DRUM (08) - HYDRAULICS

1

ND102421

PISTON

1шт.

Consists of 2, 3, 4

1шт.

2

ND102392

O-RING

1шт.

3

ND102418

SEAL

1шт.

4

ND102404

PISTON

1шт.

5

ND102403

COVER

1шт.

6

ND102474

PLUG

1шт.

7

ND102422

PLUG

2шт.

8

ND102498

BOLT

8шт.

9

ND102355

O-RING

1шт.

10

ND102552

SEAL

5шт.

11

ND102376

GASKET

1шт.

12

ND102456

HYD CONNECTOR

1шт.

13

ND102555

SPRING

2шт.

14

ND102365

SPRING CUP

2шт.

15

ND102356

PISTON

1шт.

16

ND102298

O-RING

1шт.

17

ND102430

SPRING

1шт.

18

ND102431

ROLLER BEARING

1шт.

19

ND102438

PLUG

1шт.

20

ND102391

SOLENOID VALVE

1шт.

21

ND102394

PLUG

6шт.

22

ND102474

PLUG

2шт.

23

ND102390

BOLT

4шт.

24

ND102446

VALVE BLOCK (USED)

1шт.

25

ND102439

HYDRAULIC VALVE

1шт.

Consists of 12, 16 - 19

1шт.

26

ND102416

PORT

1шт.

27

ND102448

PORT

2шт.

28

NSS

NOT SOLD SEPARAT

1шт.

29

NSS

NOT SOLD SEPARAT

1шт.

ND102450

CONTROL VALVE

1шт.

Consists of 20 - 24, 26, 27

1шт.

ND102317

PLUG

2шт.
