/ / / / / / / / (10-004-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - REAR

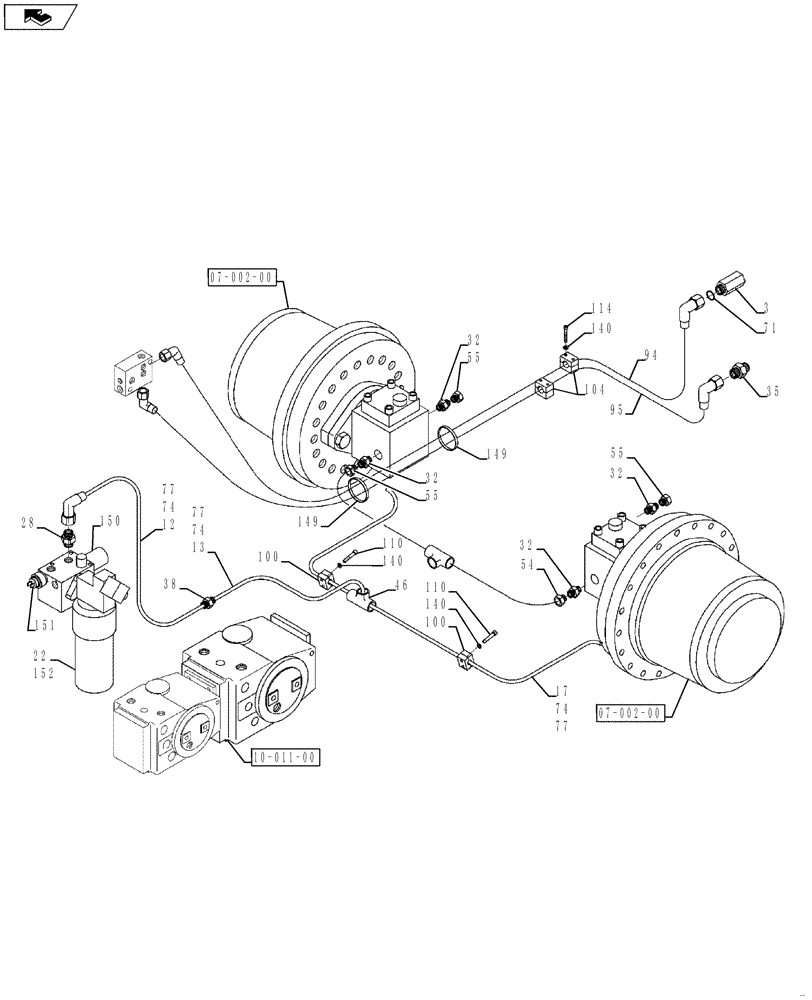

Запчасти Case SV210 (10-004-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - REAR (08) - HYDRAULICS
![Схема запчастей Case SV210 - (10-004-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - REAR (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/452024.png)
71
32
149
28
152
140
12
55
55
74
140
94
32
150
home
54
74
77
32
151
149
104
35
32
77
74
55
100
46
13
17
114
100
140
07-002-00
07-002-00
10-011-00
110
22
110
3
77
38
95
3
ND031345
HYD CONNECTOR
2шт.
12
ND104435
RIGID TUBE
1350mm
1шт.
13
ND104436
RIGID TUBE
1200mm
1шт.
16
ND104437
RIGID TUBE
950mm
1шт.
17
ND104438
RIGID TUBE
1450mm
1шт.
22
ND067795
VALVE
1шт.
28
ND062153
HYD CONNECTOR
1шт.
32
ND062135
HYD CONNECTOR
4шт.
35
ND062224
HYD CONNECTOR
1шт.
38
ND062291
HYD CONNECTOR
1шт.
46
ND062294
TEE
1шт.
50
ND062335
TEE
1шт.
54
ND062391
REDUCER
2шт.
55
ND062433
RESTRICTOR
3шт.
71
ND073366
WASHER
27 x 36 x 2
1шт.
74
ND062039
SEAL
8шт.
77
ND062046
NUT
8шт.
94
ND102226
HOSE
1650mm
1шт.
95
ND102227
FLEXIBLE HOSE
1530mm
1шт.
100
ND064797
SLEEVE
5шт.
104
ND064801
SLEEVE
2шт.
110
ND024231
BOLT
M6 x 22
5шт.
114
ND024238
BOLT
M6 x 50
4шт.
140
ND029248
WASHER
ID6,4
4шт.
149
ND078446
SECURING STRAP
370mm
15шт.
150
ND133238
SOLENOID
1шт.
151
84389510
PRESSURE SWITCH
1шт.
152
ND065484
ELEMENT
1шт.
