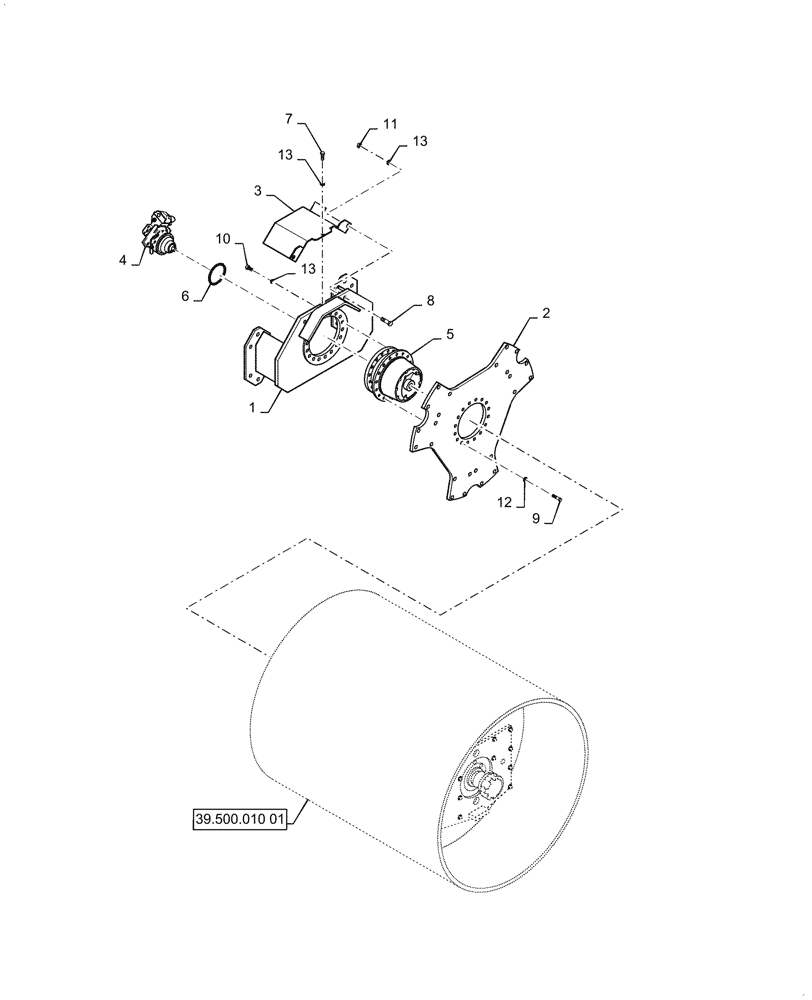

Запчасти Case SV208D (35.995.020[03]) - DRUM, DRIVE - HEAVY DUTY (39) - FRAMES AND BALLASTING

1

ND104286

SUPPORT

1шт.

2

ND104287

PLATE

Carrier

1шт.

3

ND104414

COVER

1шт.

4

84593579

HYDRAULIC MOTOR

Assembly, Incl Coil and Valve

1шт.

4

47776607

VALVE

1шт.

4

47776124

COIL

Magnetic

1шт.

4

47776625

VALVE

Slide

1шт.

4

47776629

SEAL

Shaft

1шт.

5

ND145022

TRANSMISSION

Gear Assy

1шт.

6

84593584

O-RING

1шт.

7

ND021308

BOLT

M16 x 20

1шт.

8

ND021312

BOLT

M12 x 40

2шт.

9

ND021332

BOLT

M20 x 45

18шт.

10

84577230

BOLT

18шт.

11

ND021850

NUT

M12

2шт.

12

ND035943

WASHER

ID 16

38шт.

13

ND035942

WASHER

ID 12

3шт.
