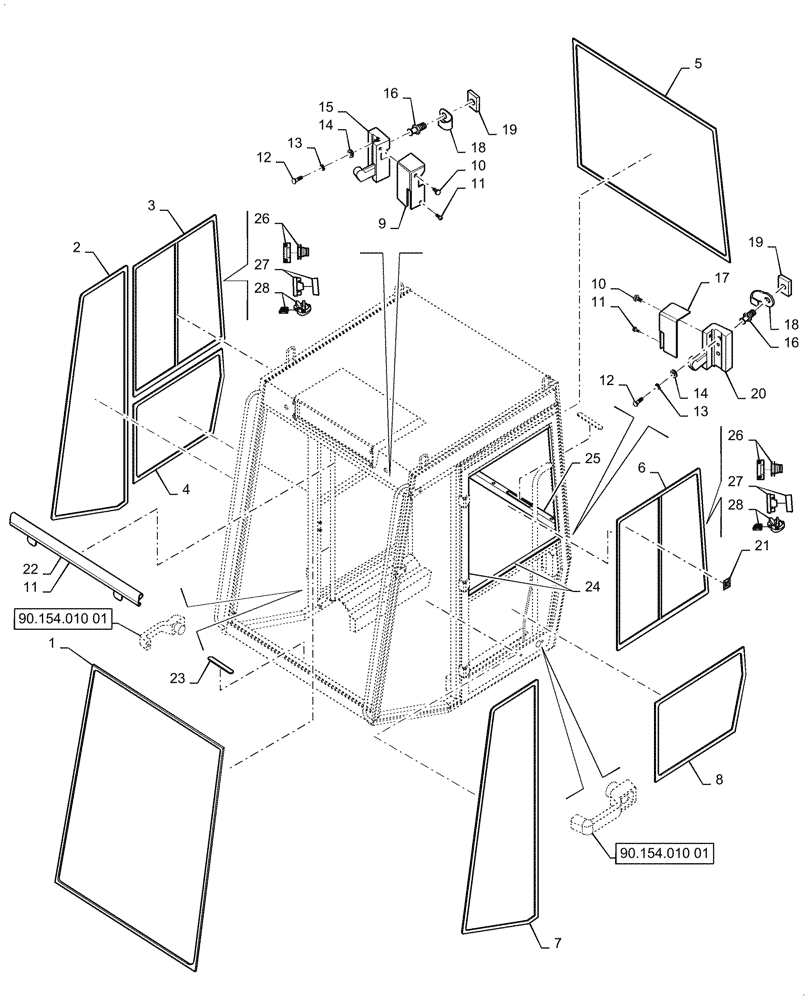

Запчасти Case SV208D (90.156.010[01]) - CAB GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ND082385

GLASS

Front

1шт.

2

ND082388

GLASS

RH

1шт.

3

ND109055

WINDOW

RH

1шт.

4

ND101000

CAB GLASS

RH

1шт.

5

ND082390

GLASS

Rear

1шт.

6

ND109054

WINDOW

LH

1шт.

7

ND082386

GLASS

LH

1шт.

8

ND100999

CAB GLASS

RH

1шт.

9

ND108066

PROTECTOR

1шт.

10

ND021287

BOLT,M8 x 16

8шт.

11

ND024966

SELF-TAP SCREW

17шт.

12

ND021289

BOLT

4шт.

13

ND029248

WASHER

19шт.

14

ND103184

WASHER

4шт.

15

ND101390

LOCK

1шт.

16

ND101393

PIN

2шт.

17

ND103149

COVER

1шт.

18

ND101394

COVER

2шт.

19

ND103185

NUT

2шт.

20

ND101389

LOCK

1шт.

21

ND106585

DECAL

Emerncy Exit

1шт.

22

ND063886

SUNSHADE

1шт.

23

ND090000

PLUG

Blower

5шт.

24

ND103219

SEALING STRIP

6000mm Long

1шт.

25

ND029690

GASKET

1шт.

26

ND140106

LATCH

Window - 80mm Long

2шт.

27

ND122651

LATCH

Window - 100mm Long

2шт.

28

47713791

LATCH

Round, Window (Kit, Incl Latch and Hook)

2шт.
