(90.108.010[01]) - DECALS

Запчасти Case SV208D (90.108.010[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

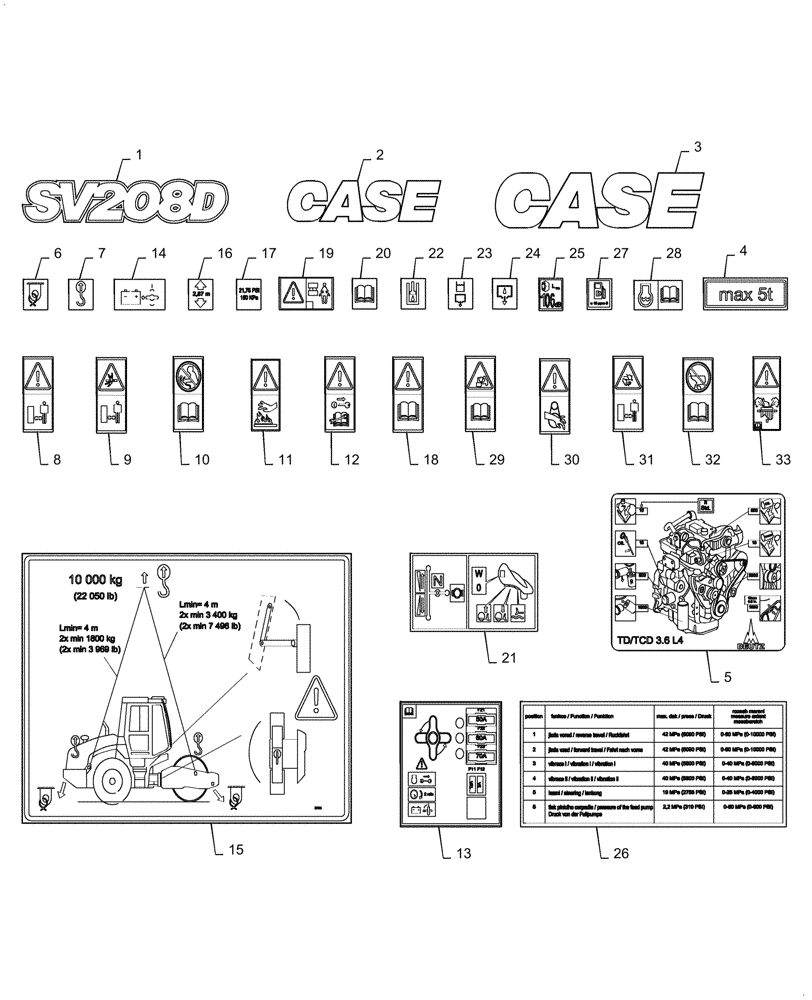

Схема запчастей Case SV208D - (90.108.010[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
24
18
20
23
10
25
32
4
33
2
22
3
16
1
29
19
17
15
27
6
12
11
5
26
9
8
28
13
14
30
21
31
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48135052

SV208D

DECAL

2шт.

2

47920463

DECAL

Case (135mm)

2шт.

3

47930875

DECAL

Case (173mm)

1шт.

4

84473323

DECAL

Max Weight

2шт.

5

48135482

engine Service Points

DECAL,decal, engine service points

1шт.

6

ND119495

DECAL

Tie Dowm

4шт.

7

ND081460

DECAL

Lifting Point

4шт.

8

ND110449

WARNING DECAL

Hazard Area

3шт.

9

ND110448

WARNING DECAL

Crush Hazard

2шт.

10

ND081852

WARNING DECAL

Read Operators Manual

1шт.

11

ND081770

WARNING DECAL

Hot Surface

1шт.

12

ND081768

WARNING DECAL

Remove Key

1шт.

13

48135470

Fuse

DECAL

1шт.

14

ND081677

DECAL

Battery Disconnect

1шт.

15

48135478

Lifting

DECAL

1шт.

16

48135479

Max Height

DECAL

1шт.

17

ND104862

DECAL

Max Height

2шт.

18

ND081886

WARNING DECAL

Read Operators Manual

1шт.

19

ND081871

WARNING DECAL

Use Seat Belt

1шт.

20

ND081612

DECAL

Operators Manual

1шт.

21

48135483

Blade Operation

DECAL

1шт.

22

ND081465

DECAL

1шт.

23

ND127257

DECAL

1шт.

24

48090417

Oil Drain

DECAL

1шт.

25

84477464

Noise Level

DECAL

1шт.

26

ND081795

DECAL

System Pressure

1шт.

27

47684969

DECAL

Diesel Fuel

1шт.

28

ND081459

DECAL

1шт.

29

47684980

DANGER DECAL

Danger, Battery Explosion

1шт.

30

ND081785

WARNING DECAL

Entanblement Hazard

2шт.

31

ND081593

DECAL

Harzardous Area

1шт.

32

ND081530

DECAL

Cleaning Machine

1шт.

33

ND130084

WARNING DECAL

Hot Liquid

1шт.
