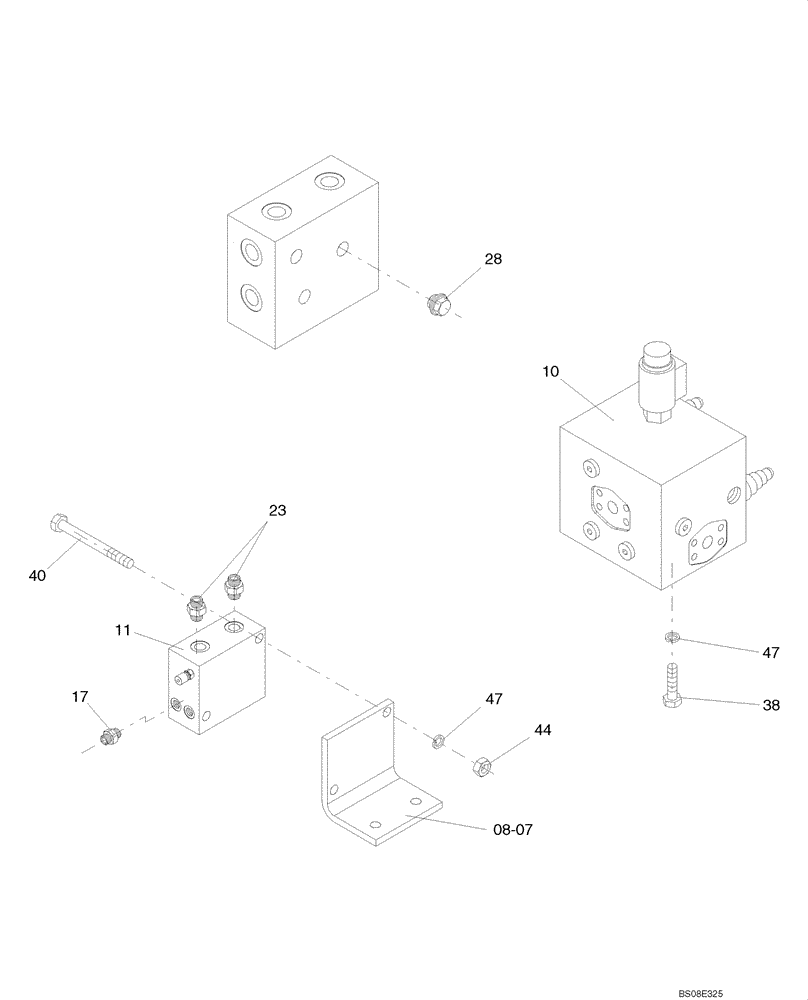

Запчасти Case SV208 (07-01[01]) - VALVE, HYDRAULIC LOCK (GROUP 317) (ND139575) (07) - BRAKES

REF

INSTRUCTION

VALVE, HYDRAULIC LOCK (ND139575) (GROUP 317)

1шт.

10

ND138581

VALVE

For Seal Kit See 48, Serial Range: -NDNTA2275

1шт.

10

47775116

VALVE

For Seal Kit See 48, Start Serial: NDNTA2276

1шт.

11

ND111159

VALVE

, Serial Range: -NDNTA2262

1шт.

11

47623764

VALVE

, Start Serial: NDNTA2263

1шт.

17

ND062173

HYD CONNECTOR

, Serial Range: -DNTA2262

1шт.

17

ND062158

HYD CONNECTOR

, Start Serial: NDNTA2263

1шт.

23

ND103410

HYD CONNECTOR

2шт.

28

ND062372

PLUG

1шт.

38

ND021301

BOLT

3шт.

40

ND021200

BOLT

2шт.

44

ND021849

NUT

2шт.

47

ND035941

WASHER

5шт.

48

47629315

KIT

1шт.

49

47717687

VALVE

Incl in 17 , Start Serial: NDNTA2263

1шт.

50

47847407

VALVE

Incl in 17, Start Serial: NDNTA2263

1шт.
