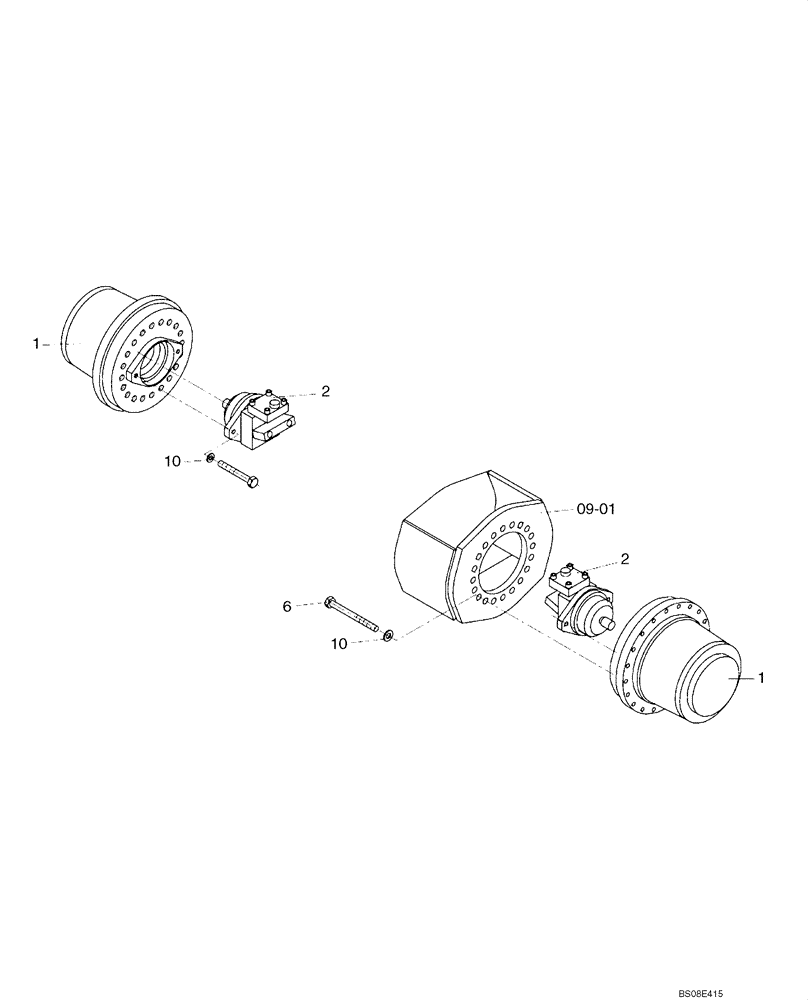

Запчасти Case SV208 (06-08[01]) - DRIVE OF REAR WHEELS (GROUP 98) (ND109308) (06) - POWER TRAIN

REF

INSTRUCTION

DRIVE OF REAR WHEELS (ND109308) (GROUP 98)

1шт.

1

ND107217

GEAR REDUCTION UNIT

2шт.

2

ND135694

HYDRAULIC MOTOR

For Seal Kit See 11

2шт.

6

ND021333

BOLT

36шт.

10

ND035943

WASHER

40шт.

11

47847405

SEAL KIT

1шт.
