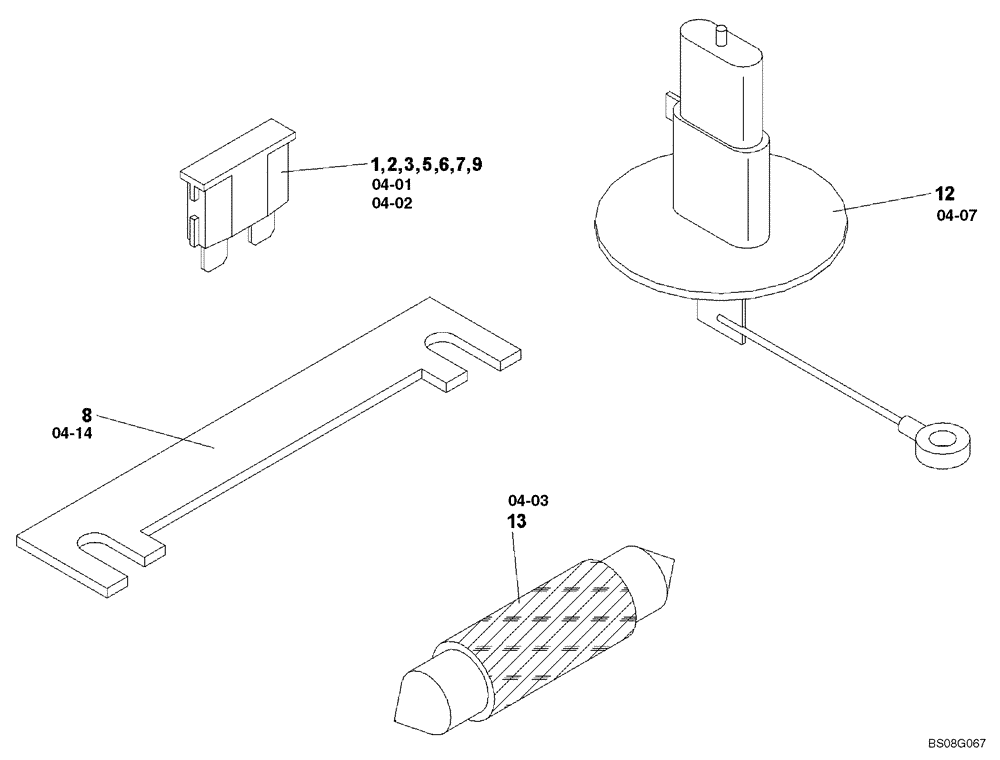

Запчасти Case SV208 (04-19[01]) - BULBS AND FUSES, QUICK REFERENCE (GROUP 540) (ND138866) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

QUICK REFERENCE, BULBS AND FUSES (ND138866) (GROUP 540)

1шт.

1

ND127722

FUSE,1A

1A

1шт.

2

ND065920

FUSE,5A

5A

1шт.

3

ND065918

FUSE,7.5A

7,5A

1шт.

4

ND065922

FUSE,10A

10A; See Figure 04-11 (01) Item 17

2шт.

5

ND065919

FUSE,15A

15A

1шт.

6

ND065923

FUSE,20A

20A

2шт.

7

ND065926

FUSE,30A

30A

1шт.

8

ND065913

FUSE,50A

Link; 50 Amp

1шт.

9

ND129301

FUSE,125A

125A

1шт.

12

ND066894

BULB,24V, 70W

24V 70W

1шт.

13

ND065107

BULB

1шт.
