(09-71[05]) - AIR CONDITIONER, CONDENSER, RECEIVER-DRYER

Запчасти Case SV208 (09-71[05]) - AIR CONDITIONER, CONDENSER, RECEIVER-DRYER (09) - CHASSIS/ATTACHMENTS

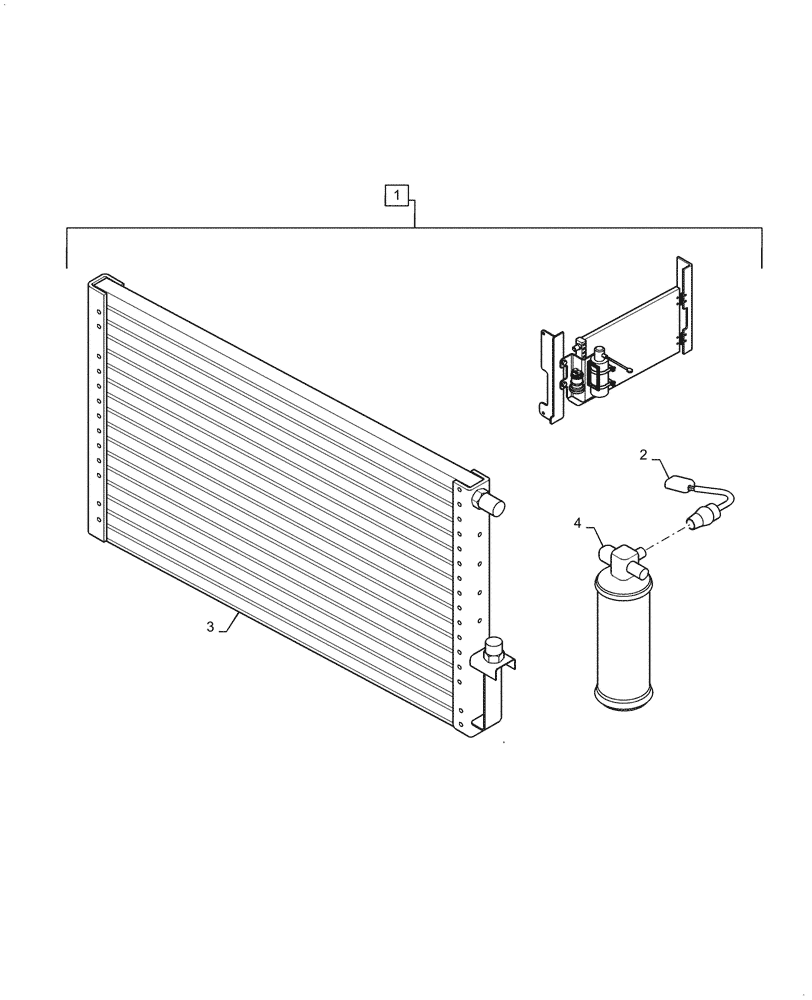

Схема запчастей Case SV208 - (09-71[05]) - AIR CONDITIONER, CONDENSER, RECEIVER-DRYER (09) - CHASSIS/ATTACHMENTS
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND140857

SERVICE KIT

A/C Condensor - Receiver Dryer, Incl 2 - 4

1шт.

2

47832019

PRESSURE SWITCH

A/C

1шт.

3

47832023

CONDENSER

1шт.

4

47773229

RECEIVER-DRYER

1шт.
