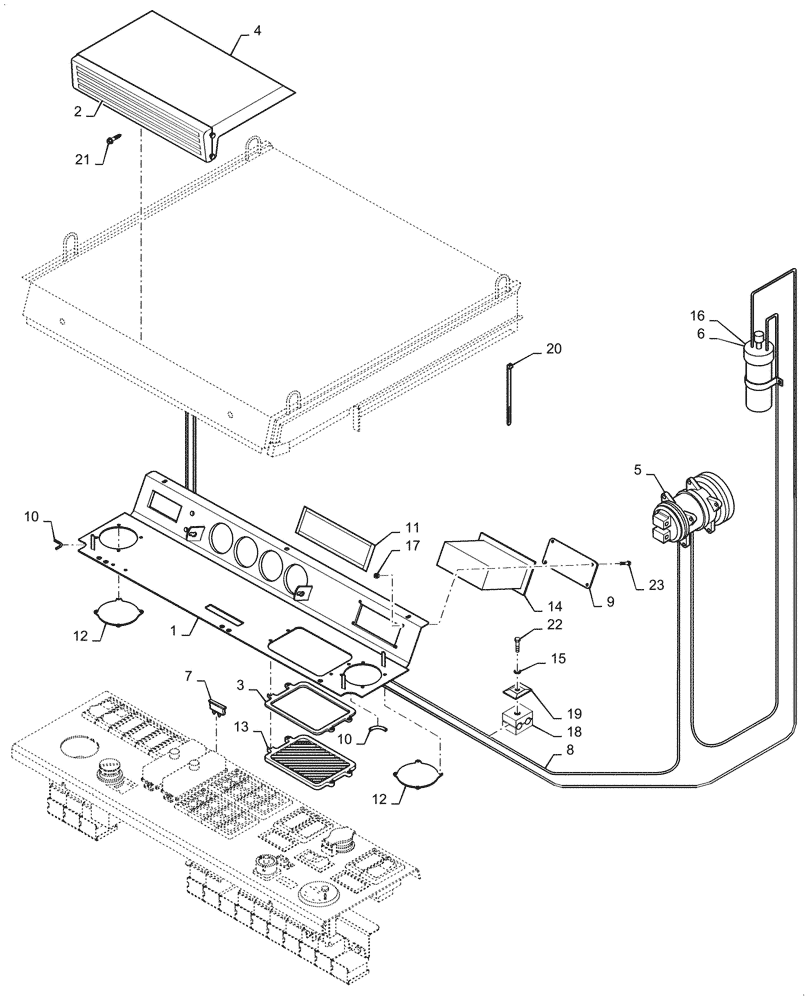

Запчасти Case SV208 (09-71[01]) - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

ND148333

PANEL

1шт.

2

ND136587

GRATE

1шт.

3

47714571

GASKET

1шт.

4

ND136690

AIR CONDITIONER

Kit, A/C Unit & Cab Parts, Serial Range: -NENTA2268

1шт.

4

47842294

KIT

Kit, A/C Unit & Cab Parts, Start Serial: NENTA2269

1шт.

5

ND140856

SERVICE KIT

Kit, A/C Compressor - Engine Parts

1шт.

6

ND140857

SERVICE KIT

Kit, A/C Condensor - Reciever Dryer, For Pressure Switch See Fig 09-71(05)

1шт.

7

ND065919

FUSE,15A

1шт.

8

ND140858

SERVICE KIT

Kit, A/C Hoses

1шт.

9

ND134831

ACCESS COVER

1шт.

10

ND078396

TRIM

1шт.

11

ND076085

TAPE

1шт.

12

ND148344

ACCESS COVER

2шт.

13

ND148342

GRATE

1шт.

14

ND148336

HOLDER

1шт.

15

ND029248

WASHER

4шт.

16

ND069948

RIVET

8шт.

17

ND107948

LOCK NUT

5шт.

18

ND061999

CLAMP

1шт.

19

ND062001

CLAMP

1шт.

20

ND078445

SECURING STRAP

6шт.

21

ND024965

SELF-TAP SCREW

3шт.

22

ND024236

BOLT

4шт.

23

ND127694

BOLT

5шт.
