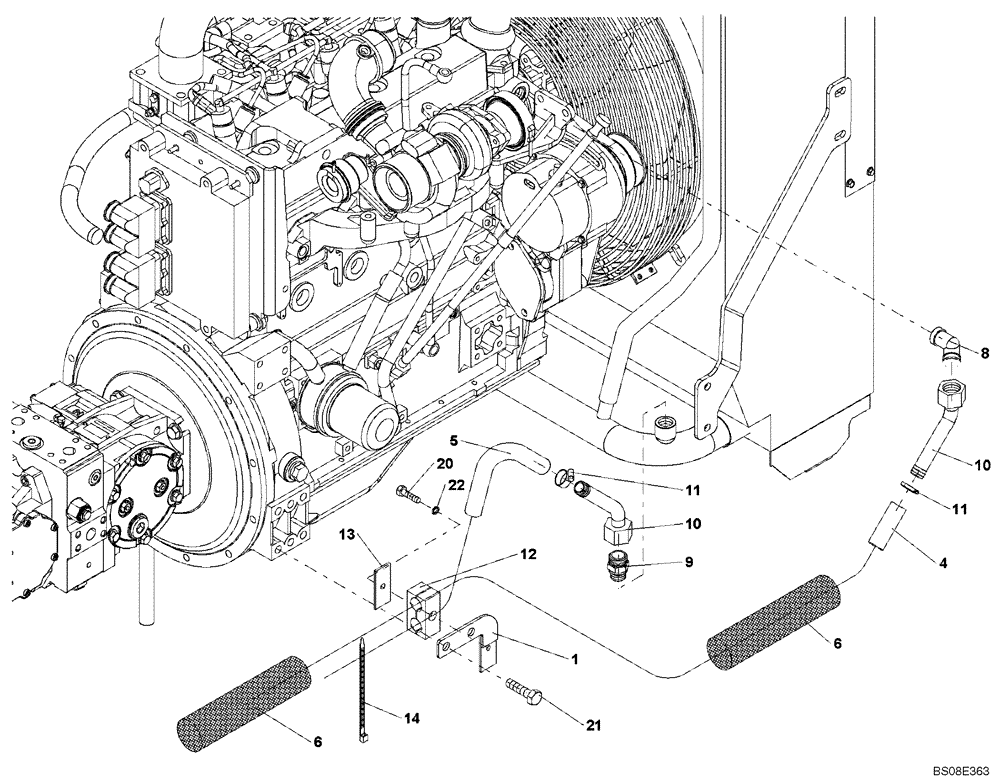

Запчасти Case SV208 (09-64[01]) - HEATER CONNECTION, ENGINE (GROUP 606) (ND138839) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

HEATER CONNECTION, ENGINE (ND138839) (GROUP 606)

1шт.

1

ND138877

HOLDER

1шт.

4

ND138886

SHAFT

1шт.

5

ND138887

SHAFT

1шт.

6

ND062022

PROTECTING COVER

4шт.

8

ND112441

ELBOW

1шт.

9

ND062131

FITTING

1шт.

10

ND062216

HOSE

2шт.

11

ND069479

CLAMP

2шт.

12

ND064820

SLEEVE

Clamp

1шт.

13

ND064822

COVER

1шт.

14

ND078445

SECURING STRAP

4шт.

20

ND021186

BOLT

1шт.

21

ND021312

BOLT

Replaces ND021314 Bolt Used On Some Models

2шт.

22

ND035940

SPRING WASHER

Spring

1шт.

26

NSS

NOT SOLD SEPARAT

ND135831, Teflon Tape Not Illustrated; Replaces ND138889 Teflon Tape

1шт.
