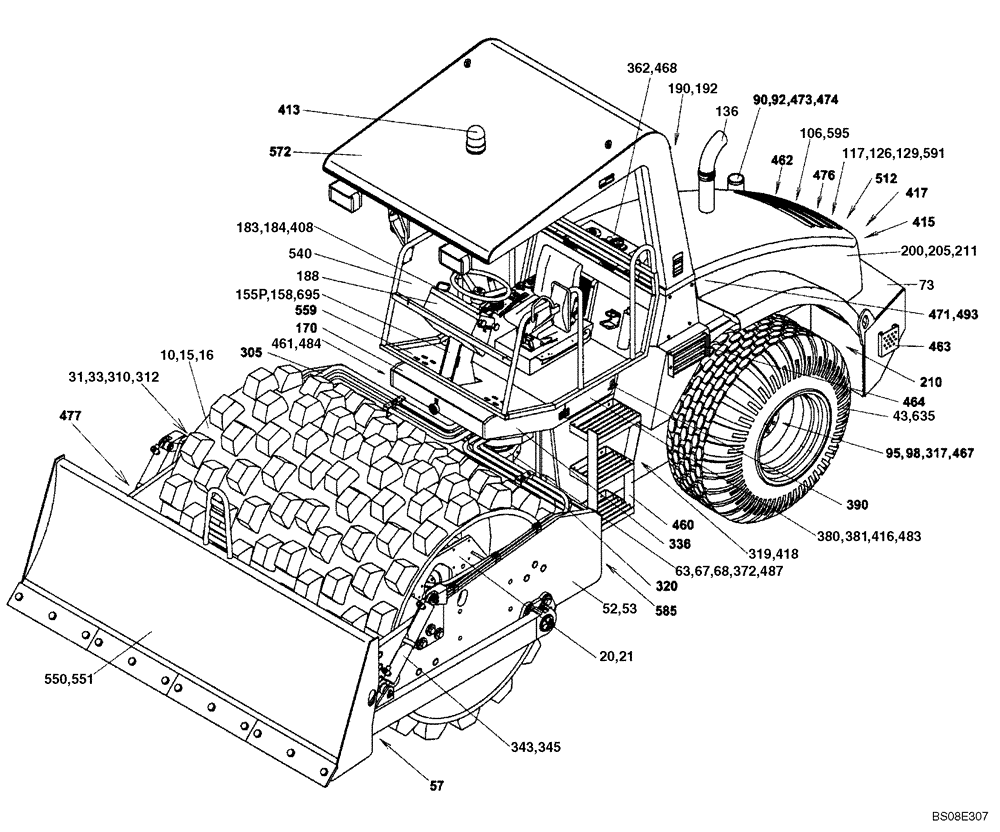

Запчасти Case SV208 (01-04[01]) - PICTORIAL INDEX / PLATFORM CANOPY / PAD FOOT DRUM (00) - PICTORIAL INDEX
![Схема запчастей Case SV208 - (01-04[01]) - PICTORIAL INDEX / PLATFORM CANOPY / PAD FOOT DRUM (00) - PICTORIAL INDEX](https://partsell.ru/storage/images/casece/1284477.png)
№
Артикул
Название
Примечание
Количество
10
REF
INSTRUCTION
Vibrating Drum, Pad Foot
1шт.
15
REF
INSTRUCTION
Rubber Mounting
1шт.
16
REF
INSTRUCTION
Rubber Mountings
1шт.
20
REF
INSTRUCTION
Vibrator, Drum - SV208
1шт.
21
REF
INSTRUCTION
Vibrator, Drum - SV210
1шт.
31
REF
INSTRUCTION
Drum Drive, Front
1шт.
33
REF
INSTRUCTION
Drum Drive, Front - ATC / ATCH
1шт.
43
REF
INSTRUCTION
Wheel Assy
1шт.
52
REF
INSTRUCTION
Frame, Drum - SV208
1шт.
53
REF
INSTRUCTION
Frame, Drum - SV210
1шт.
57
REF
INSTRUCTION
Drum Scraper, Pad Foot
1шт.
63
REF
INSTRUCTION
Articulation Joint
1шт.
67
REF
INSTRUCTION
Hose Holder
1шт.
68
REF
INSTRUCTION
Lock, Articulation Joint
1шт.
73
REF
INSTRUCTION
Frame, Rear
1шт.
90
REF
INSTRUCTION
Cap, Fuel Tank
1шт.
92
REF
INSTRUCTION
Lock, Fuel
1шт.
95
REF
INSTRUCTION
Drive Of Rear Wheels
1шт.
98
REF
INSTRUCTION
Drive Of Rear Axle
1шт.
106
REF
INSTRUCTION
Engine Mounting
1шт.
117
REF
INSTRUCTION
Fan Mounting
1шт.
126
REF
INSTRUCTION
Radiator Installation
1шт.
129
REF
INSTRUCTION
Drain, Radiator
1шт.
136
REF
INSTRUCTION
Engine - Air Filtration And Exhaust
1шт.
155p
REF
INSTRUCTION
Platform, Canopy
1шт.
158
REF
INSTRUCTION
Seat Assy
1шт.
170
REF
INSTRUCTION
Platform Mounting
1шт.
183
REF
INSTRUCTION
Cover
1шт.
184
REF
INSTRUCTION
Cover Mounting
1шт.
188
REF
INSTRUCTION
Steering Control
1шт.
190
REF
INSTRUCTION
Precleaner, Air
1шт.
192
REF
INSTRUCTION
Cover, Air Inlet
1шт.
200
REF
INSTRUCTION
Hood, Engine
1шт.
205
REF
INSTRUCTION
Hood, Mounting Hardware
1шт.
211
REF
INSTRUCTION
Cover, Battery
1шт.
210
REF
INSTRUCTION
Fender Parts
1шт.
305
REF
INSTRUCTION
Hydraulic System Of Travel
1шт.
310
REF
INSTRUCTION
Hyd. Lines, Front Drum Drive
1шт.
312
REF
INSTRUCTION
Hyd. Lines, Front Drum Drive ATCH
1шт.
317
REF
INSTRUCTION
Valve, Hydraulic Lock
1шт.
319
REF
INSTRUCTION
Anti-Slip High Traction Control
1шт.
320
REF
INSTRUCTION
Hydraulic Lines, Drum Vibration
1шт.
336
REF
INSTRUCTION
Steering, Hydraulics
1шт.
343
REF
INSTRUCTION
Blade, Hydraulics - SV208
1шт.
345
REF
INSTRUCTION
Blade, Hydraulics - SV210
1шт.
362
REF
INSTRUCTION
Tank, Hydraulic W/ Electric Pump
1шт.
372
REF
INSTRUCTION
Cylinder, Steering
1шт.
380
REF
INSTRUCTION
Hood And Platform Tilt, Hydraulics
1шт.
381
REF
INSTRUCTION
Lift, Hydraulic
1шт.
390
REF
INSTRUCTION
Lines, Hydraulic Diagnostic
1шт.
408
REF
INSTRUCTION
Electrical Installation
1шт.
413
REF
INSTRUCTION
Beacon, Flashing
1шт.
415
REF
INSTRUCTION
Alarm, Back Up
1шт.
416
REF
INSTRUCTION
Electrical - Cab / Engine Hood Tilt
1шт.
417
REF
INSTRUCTION
Signal Diode, Hood Tilt
1шт.
418
REF
INSTRUCTION
Lock, Ainti-Slip Control
1шт.
460
REF
INSTRUCTION
Steps, Platform Access LH
1шт.
462
REF
INSTRUCTION
Step RH
1шт.
463
REF
INSTRUCTION
Step LH
1шт.
464
REF
INSTRUCTION
Step, Upper Left
1шт.
467
REF
INSTRUCTION
Cover, Rear Drive Motor
1шт.
468
REF
INSTRUCTION
Cover, Hydraulic Tank
1шт.
471
REF
INSTRUCTION
Cover, Hydraulic Pump
1шт.
473
REF
INSTRUCTION
Battery Hold Down / Tank Parts
1шт.
474
REF
INSTRUCTION
Sieve, Fuel
1шт.
476
REF
INSTRUCTION
Drawbar, Rear
1шт.
477
REF
INSTRUCTION
Drawbar, Front
1шт.
483
REF
INSTRUCTION
Door, Access LH
1шт.
484
REF
INSTRUCTION
Door, Access RH
1шт.
487
REF
INSTRUCTION
Lock, Joint
1шт.
493
REF
INSTRUCTION
Tool Box
1шт.
512
REF
INSTRUCTION
Medallion, Case
1шт.
540
REF
INSTRUCTION
Bulbs / Fuses
1шт.
550
REF
INSTRUCTION
Dozer Blade - SV208
1шт.
551
REF
INSTRUCTION
Dozer Blade - SV210
1шт.
547
REF
INSTRUCTION
Filters
1шт.
559
REF
INSTRUCTION
Blade Control
1шт.
572
REF
INSTRUCTION
ROPS - FOPS Installation
1шт.
585
REF
INSTRUCTION
Step, Drum Frame
1шт.
591
REF
INSTRUCTION
Guard, Fan
1шт.
595
REF
INSTRUCTION
Shield, Alternator
1шт.
635
REF
INSTRUCTION
Tire Inflation
1шт.
695
REF
INSTRUCTION
Seatbelt, Retractable 3 Inch
1шт.
Выбрано товаров: 83
