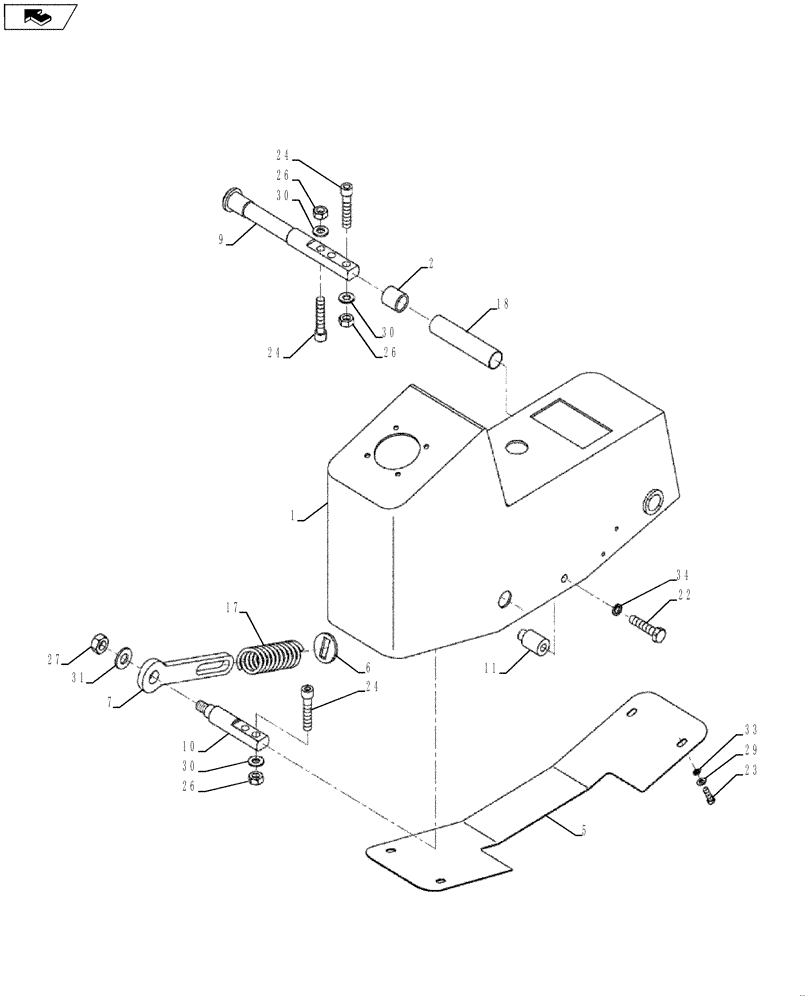

Запчасти Case SV208 (09-49[01]) - PANEL (GROUP 158-1) (ND115395) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

PANEL ASSY (ND115395) (GROUP 158-1)

1шт.

1

ND115394

PANEL

1шт.

2

ND145052

BUSHING

1шт.

5

ND115403

COVER

Panel

1шт.

6

ND115414

STOP

1шт.

7

ND115415

ROD

Pull

1шт.

9

ND115410

PIN

1шт.

10

ND115411

PIN

1шт.

11

ND115412

ADAPTER

1шт.

17

ND115169

SPRING

1шт.

18

ND035961

BUSHING

2шт.

22

ND021187

BOLT

1шт.

23

ND024121

BOLT

4шт.

24

ND024246

BOLT

5шт.

26

ND027301

NUT

5шт.

27

ND027302

NUT

1шт.

29

ND029247

WASHER

4шт.

30

ND029249

WASHER

5шт.

31

ND029292

INSULATING WASHER

1шт.

33

ND029308

WASHER

Spring

4шт.

34

ND035940

SPRING WASHER

Spring

1шт.
