(09-48[01]) - SEAT ASSY (GROUP 158) (ND126721)

Запчасти Case SV208 (09-48[01]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS

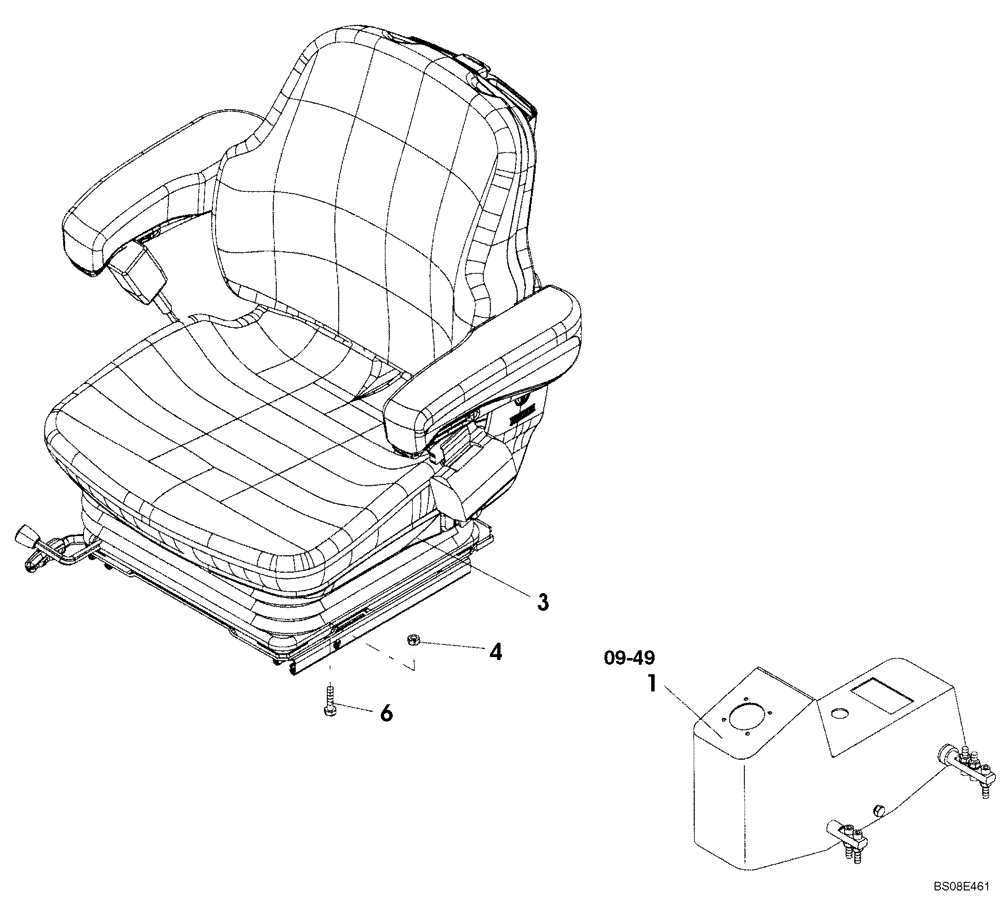

Схема запчастей Case SV208 - (09-48[01]) - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS
3
4
6
1
09-49
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ND126721

SEAT ASSY.

(GROUP 158)

1шт.

1

ND115395

PANEL

See Figure 09-49 For Service Breakdown

1шт.

3

ND114822

DRIVER SEAT

Includes; Operator Present Seat Switch ND124384

1шт.

3-1

ND124384

LIMIT SWITCH

Not Illustrated

1шт.

4

ND027301

NUT

4шт.

6

ND029249

WASHER

4шт.
