(09-38[01]) - INSULATOR, PLATFORM (GROUP 155) (ND012015)

Запчасти Case SV208 (09-38[01]) - INSULATOR, PLATFORM (GROUP 155) (ND012015) (09) - CHASSIS/ATTACHMENTS

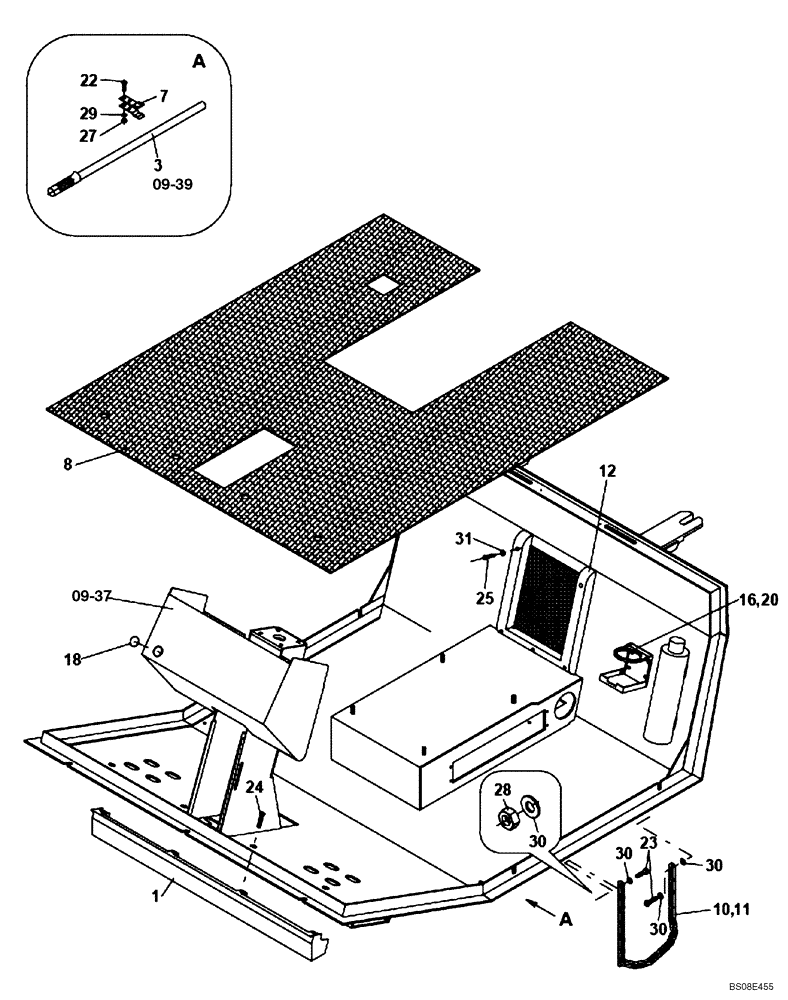

Схема запчастей Case SV208 - (09-38[01]) - INSULATOR, PLATFORM (GROUP 155) (ND012015) (09) - CHASSIS/ATTACHMENTS
12
24
10
1
3
30
30
11
09-39
18
28
16
8
20
27
23
25
09-37
29
30
22
30
7
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INSULATOR, PLATFORM (ND012015) (GROUP 155)

1шт.

1

ND029730

COVER

1шт.

3

ND108074

PIPE

Complete; See Figure 09-39 (01) For Service Breakdown

1шт.

7

ND109488

CLAMP

Spring

2шт.

8

ND017889

INSULATOR

1шт.

10

ND050824

LINK CHAIN

1шт.

11

ND101585

PLASTIC-RUBBER TUBE

Plastic

1шт.

12

ND064533

NET

1шт.

16

ND090001

SUPPORT

1шт.

18

ND127750

PLUG

1шт.

20

ND025008

SELF-TAP SCREW

M4 x 16 Self Tapping

4шт.

22

ND021290

BOLT

M6 x 22

2шт.

23

ND021293

BOLT

M8 x 16

2шт.

24

ND024388

SCREW

M8 x 12 Countersink

4шт.

25

ND024967

SELF-TAP SCREW

M4 x 16 Self Tapping

5шт.

27

ND027300

NUT

M6

2шт.

28

ND027301

NUT

M8

1шт.

29

ND029248

WASHER

4шт.

30

ND029249

WASHER

ID 8,4

4шт.

31

ND029246

WASHER

5шт.
