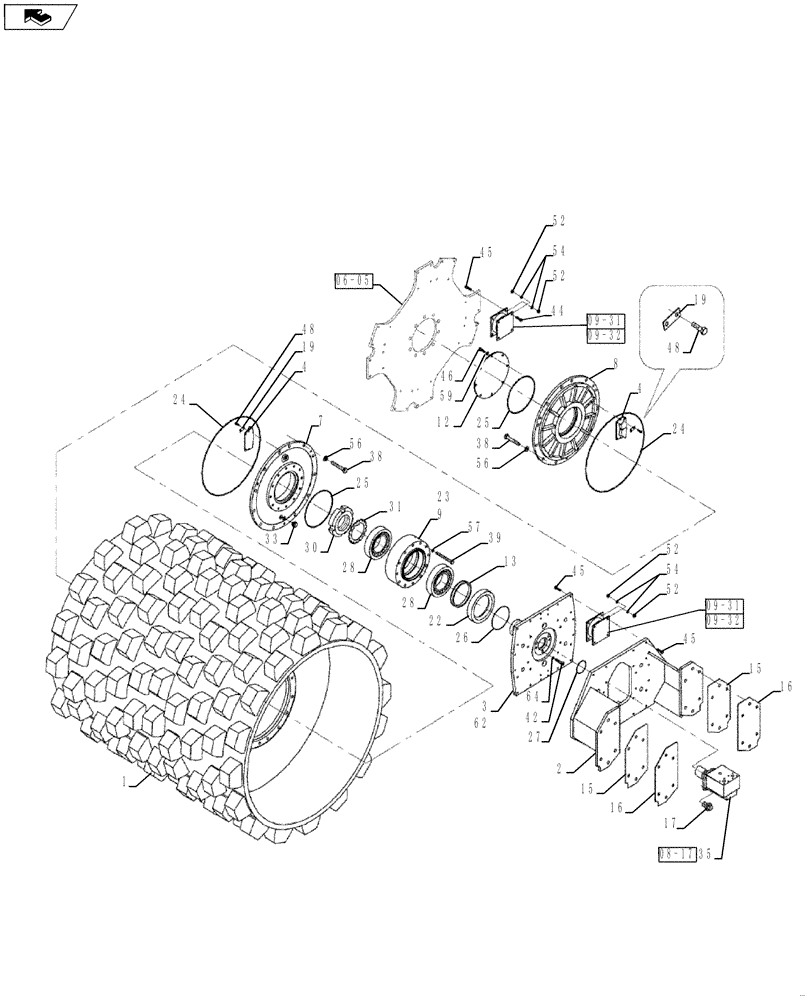

Запчасти Case SV208 (09-33[01]) - VIBRATORY DRUM, PAD FOOT (GROUP 10) (ND104879) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

VIBRATING DRUM, PAD FOOT (ND104879) (GROUP 10)

1шт.

1

ND104878

DRUM

Pad Foot

1шт.

2

ND104283

SUPPORT

1шт.

3

ND119053

PLATE

Damper

1шт.

4

ND030914

OILER

2шт.

7

ND104258

COVER

LH

1шт.

8

ND104259

COVER

RH

1шт.

9

ND018184

HUB

1шт.

12

ND031193

COVER

1шт.

13

ND029017

RING

1шт.

15

ND104387

SPACER

Plate

2шт.

16

ND104386

SPACER

Plate

2шт.

17

ND118093

BOLT

2шт.

19

ND052827

WASHER

4шт.

22

ND079060

OIL SEAL

210 x 240 x 15

1шт.

23

ND068985

RING

1шт.

24

ND108238

O-RING

650 x 5

2шт.

25

ND108239

O-RING

2шт.

26

ND108235

O-RING

190 x 3

1шт.

27

ND108233

O-RING

102 x 3

1шт.

28

ND069049

BALL BEARING,130mm ID x 180mm OD x 32mm W

2шт.

30

ND069123

NUT

M130 x 2

1шт.

31

ND069141

WASHER

1шт.

33

ND065651

PLUG

M30x1,5

4шт.

35

NSS

NOT SOLD SEPARAT

HYD. MOTOR ASSY; See Figure 08-17 (01) For Service Breakdown

1шт.

38

ND021243

BOLT

M20 x 70

24шт.

39

ND021236

BOLT

M16 x 130

12шт.

42

ND024285

BOLT

M14 x 25

3шт.

44

84373437

BOLT

24шт.

45

ND021312

BOLT

M12 x 35

56шт.

46

ND021309

BOLT,M12 x 25

M12 x 25

8шт.

48

ND021293

BOLT

M8 x 16

8шт.

52

ND034086

NUT

M12

80шт.

54

ND029267

WASHER

80шт.

56

ND035944

WASHER

ID 20

24шт.

57

ND035943

WASHER

ID 16

12шт.

59

ND035942

WASHER

ID 12

8шт.

62

ND107208

BLEEDER

Valve

1шт.

64

ND073356

PACKING RING

14 x 18 x 1,5

3шт.
