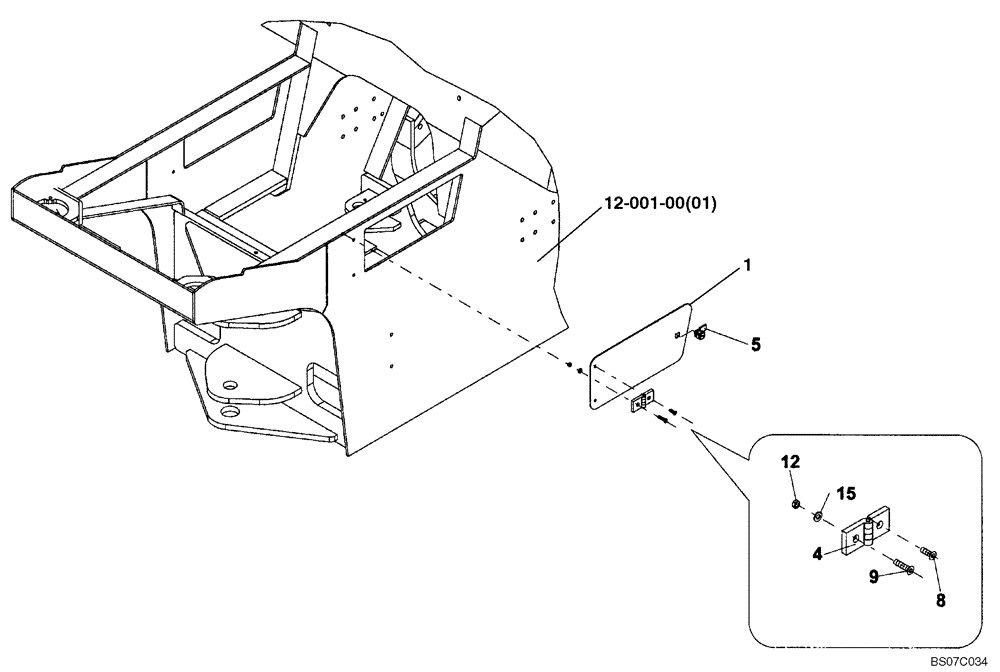

Запчасти Case SV208 (12-001-00[12]) - DOOR, ACCESS LH (GROUP 483) (ND132353) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

DOOR, ACCESS LH (ND126706) (GROUP 483)

1шт.

1

ND132363

ACCESS COVER

SHEET, LH

1шт.

4

ND124581

HINGE

1шт.

5

ND101396

LOCK

1шт.

8

ND124565

BOLT

2шт.

9

ND124604

BOLT

2шт.

12

ND021847

NUT

2шт.

15

ND124703

WASHER

4шт.
