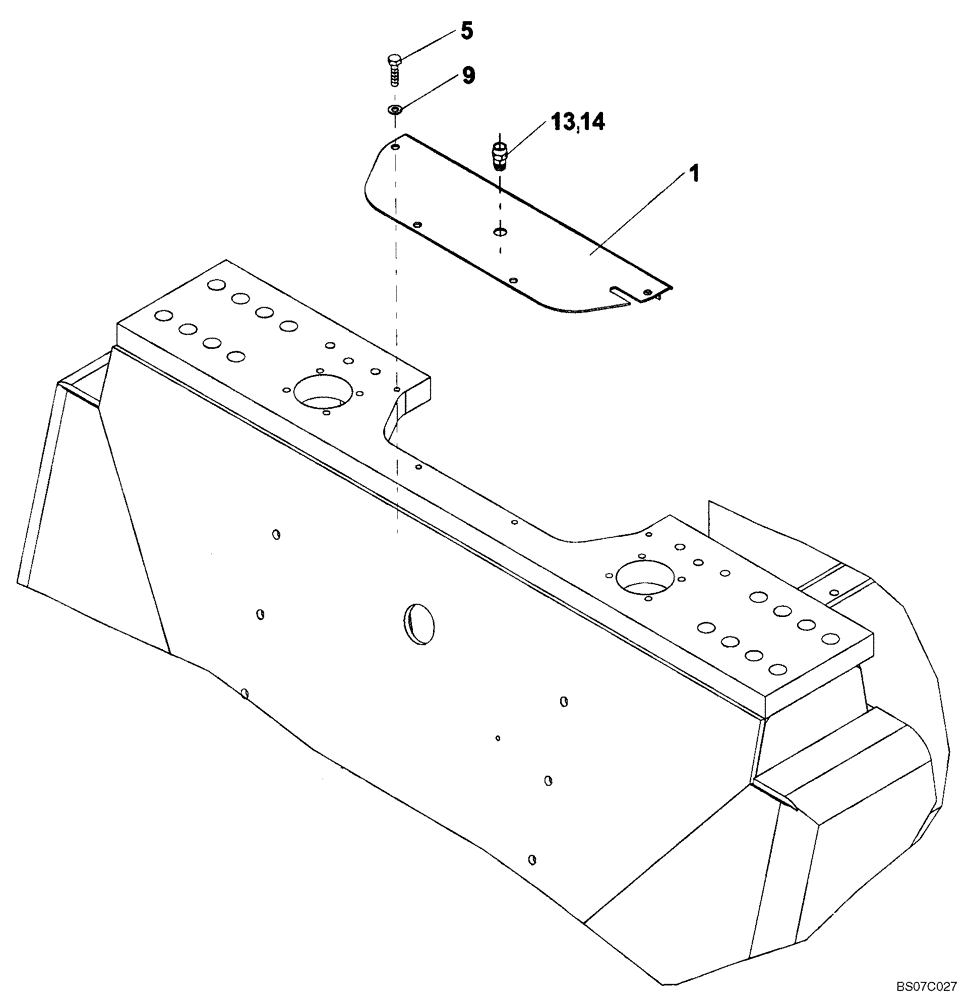

Запчасти Case SV208 (12-001-00[05]) - COVER, HYDRAULIC TANK (GROUP 468) (ND126701) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

COVER, HYDRAULIC TANK (ND126701) (GROUP 468)

1шт.

1

ND030875

COVER

Sheet

1шт.

5

ND092562

BOLT

4шт.

9

ND035941

WASHER

4шт.

13

ND121084

PLUG

1шт.

14

ND063170

NUT

1шт.
