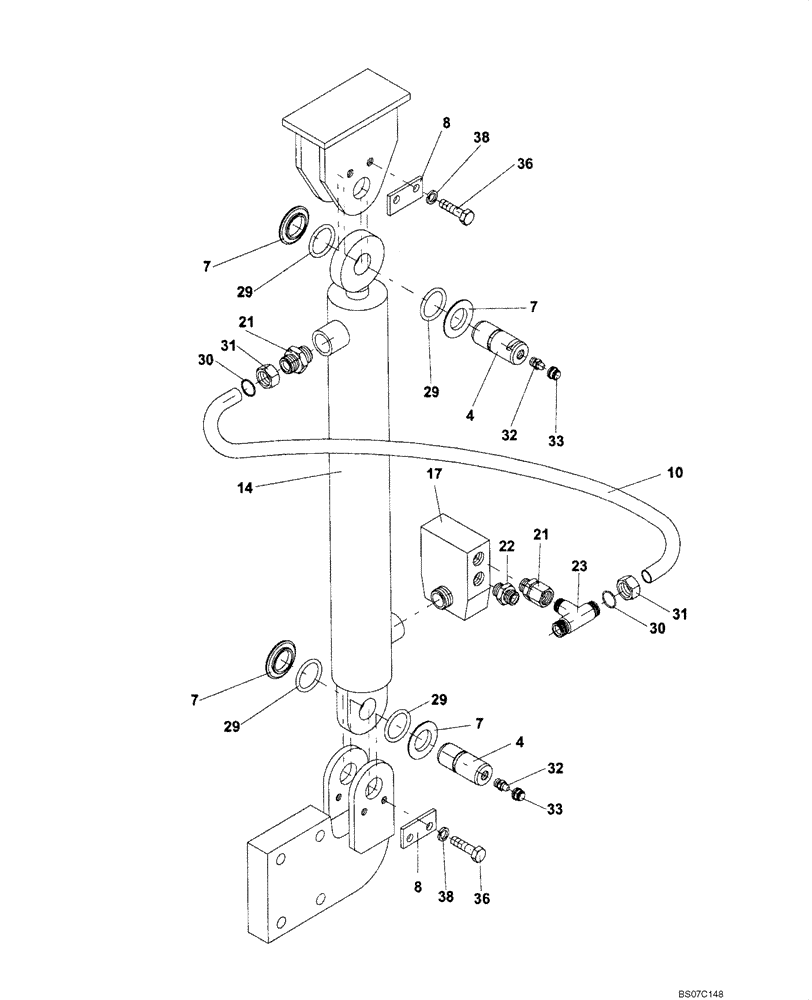

Запчасти Case SV208 (10-007-00[01]) - CYLINDER, HYDRAULIC - HOOD LIFT RH (GROUP 382-1) (ND103127) (08) - HYDRAULICS

REF

INSTRUCTION

CYLINDER, HYDRAULIC HOOD LIFT RH (ND103127) (GROUP 382-1)

1шт.

4

ND049262

PIN

2шт.

7

ND049260

INSERT

4шт.

8

ND049268

COVER PLATE

2шт.

10

ND120350

PIPE

1шт.

14

ND068121

CYLINDER

1шт.

17

ND067918

VALVE

1шт.

21

ND062200

HYD CONNECTOR

2шт.

22

ND062221

HYD CONNECTOR

1шт.

23

ND062326

HYD CONNECTOR

1шт.

29

ND079727

O-RING

332 x 2,5

4шт.

30

ND062038

SEAL

2шт.

31

ND062045

NUT

2шт.

32

ND070133

LUBE NIPPLE,M10 x 1

M10 x 1

2шт.

33

ND064758

PLUG

2шт.

36

ND021292

BOLT

M8 x 12

4шт.

38

ND035940

SPRING WASHER

ID 8

4шт.
