(07-002-01[01]) - DRIVE OF REAR WHEELS (GROUP 98) (ND109308)

Запчасти Case SV208 (07-002-01[01]) - DRIVE OF REAR WHEELS (GROUP 98) (ND109308) (06) - POWER TRAIN

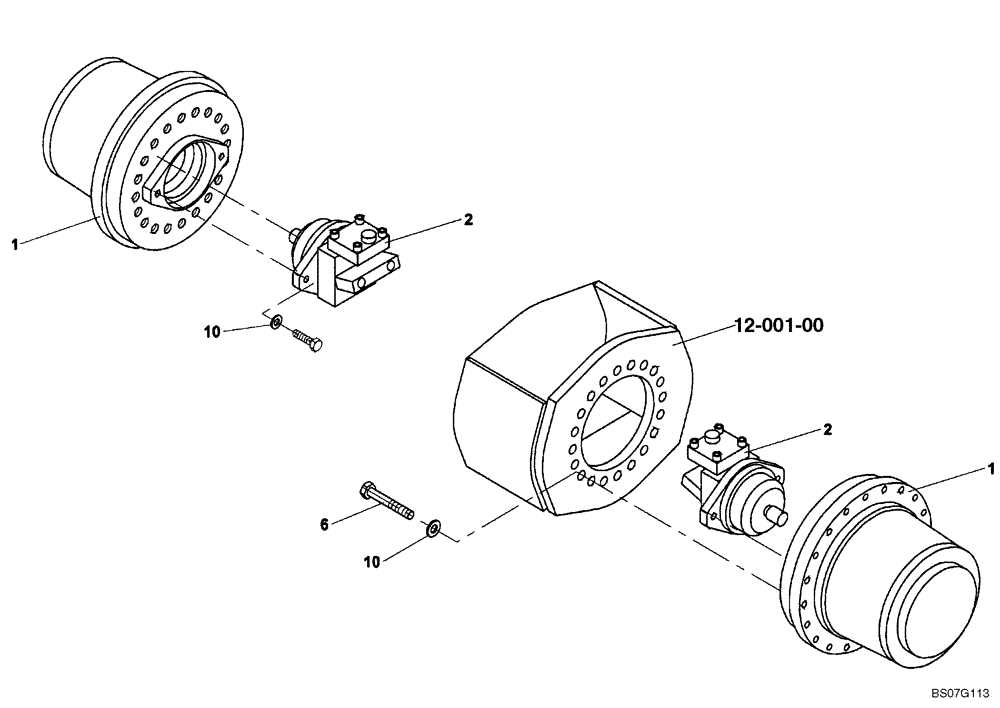

Схема запчастей Case SV208 - (07-002-01[01]) - DRIVE OF REAR WHEELS (GROUP 98) (ND109308) (06) - POWER TRAIN
10
1
2
2
1
12-001-00
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE OF REAR WHEELS (ND109308) (GROUP 98)

1шт.

1

ND107217

GEAR REDUCTION UNIT

2шт.

2

ND135694

HYDRAULIC MOTOR

Replaces ND110364 Motor, Hydraulic

2шт.

6

ND021333

BOLT

36шт.

10

ND035943

WASHER

40шт.
