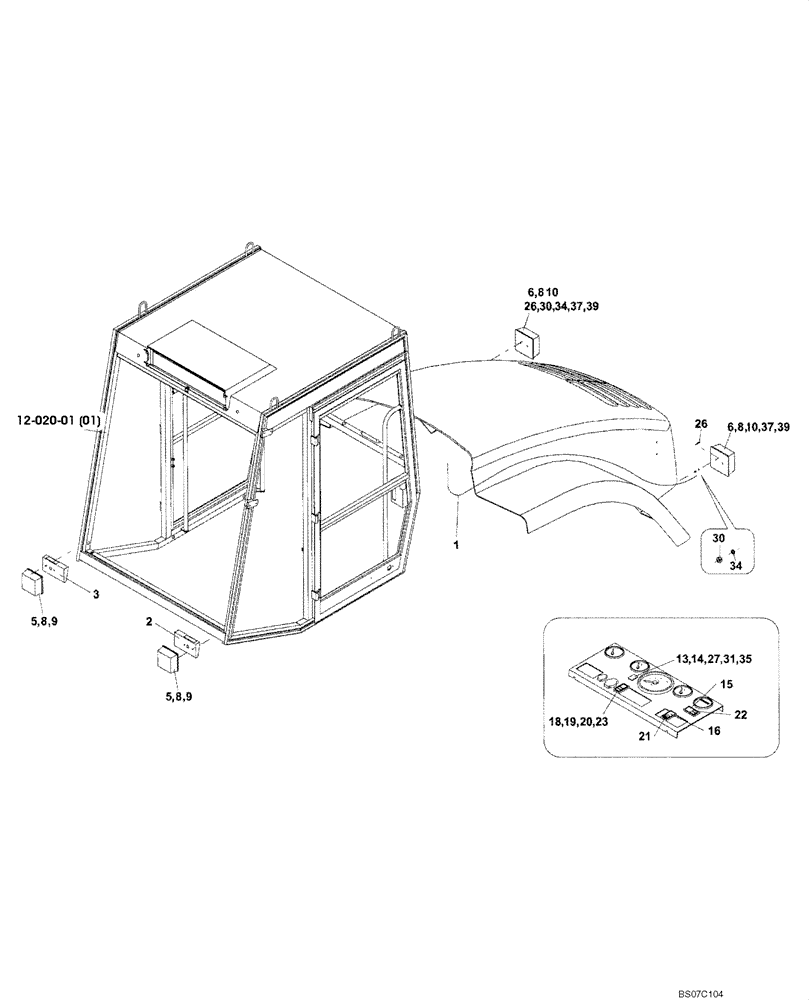

Запчасти Case SV208 (04-001-07[01]) - LAMPS, INDICATOR (GROUP 412) (ND109535) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

INDICATOR LAMPS (ND109535) (GROUP 412)

1шт.

1

ND109551

WIRE HARNESS

1шт.

2

ND103136

SUPPORT

Lamp Holder Left

1шт.

3

ND107154

SUPPORT

Lamp Holder Right

1шт.

5

ND065108

INDICATOR, TURN SIGN

2шт.

6

ND065134

HEADLAMP

2шт.

8

ND066897

BULB,24V, 21W

4шт.

9

ND066885

BULB,24V, 10W

2шт.

10

ND066886

BULB,24V, 3W

2шт.

13

ND065139

FLASHER UNIT

1шт.

14

ND065143

HOLDER

Base Relay

1шт.

15

ND065393

SWITCH

Turn Signal

1шт.

16

ND065434

SWITCH

Hazzard

1шт.

18

ND065398

INDICATOR LIGHT

Pilot Lamp

1шт.

19

ND065422

SWITCH

Headlamp Switch

1шт.

20

ND065354

LENS

Rating Plate

1шт.

21

ND065342

LENS

Rating Plate

1шт.

22

ND065421

DECAL

1шт.

23

ND065351

LENS

Rating Plate

1шт.

26

ND024112

BOLT

4шт.

27

ND093424

BOLT

1шт.

30

ND026413

NUT

4шт.

31

ND021846

NUT

1шт.

34

ND029306

WASHER

ID 4,1

4шт.

35

ND029308

WASHER

ID 5,1

1шт.

37

ND029246

WASHER

4шт.

39

ND029289

WASHER

For Wood

4шт.
